Sound Barrier CORE82A

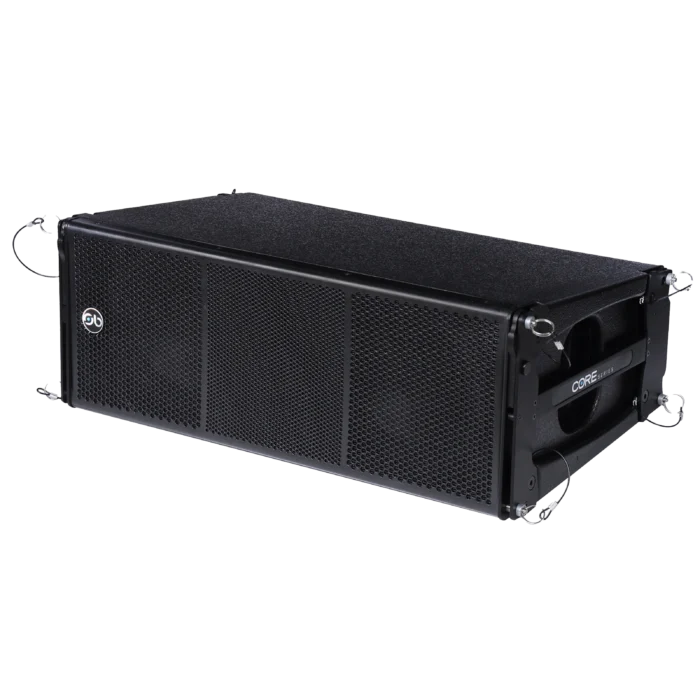

Sound Barrier CORE 82A Dual 8″ Active Line Array Module

Overview

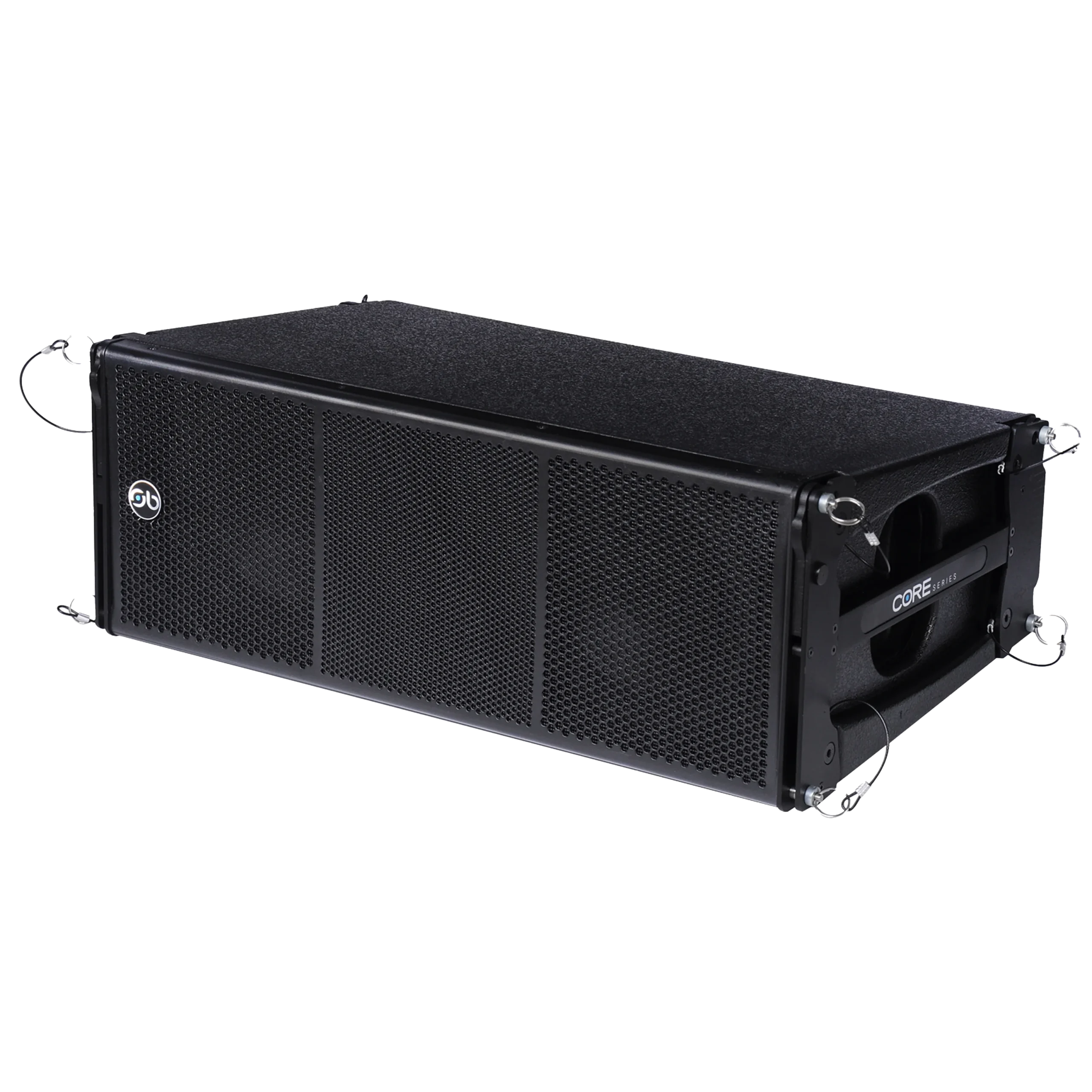

The Sound Barrier CORE 82A is a compact yet powerful active line array system designed for professional audio applications. Combining advanced horn-loading techniques with a two-way configuration, it delivers impressive dynamic impact and clarity. Ideal for both touring and fixed installations, the CORE 82A offers versatility and high-performance audio reproduction.

Key Features

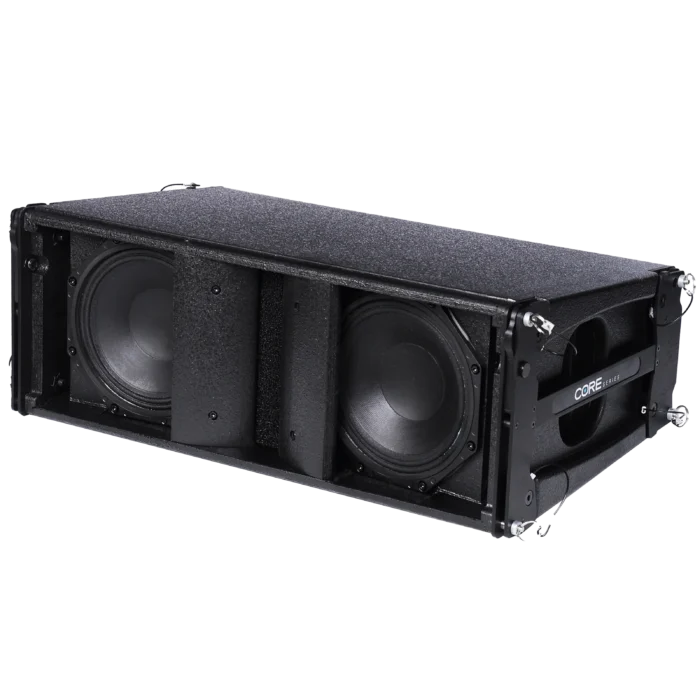

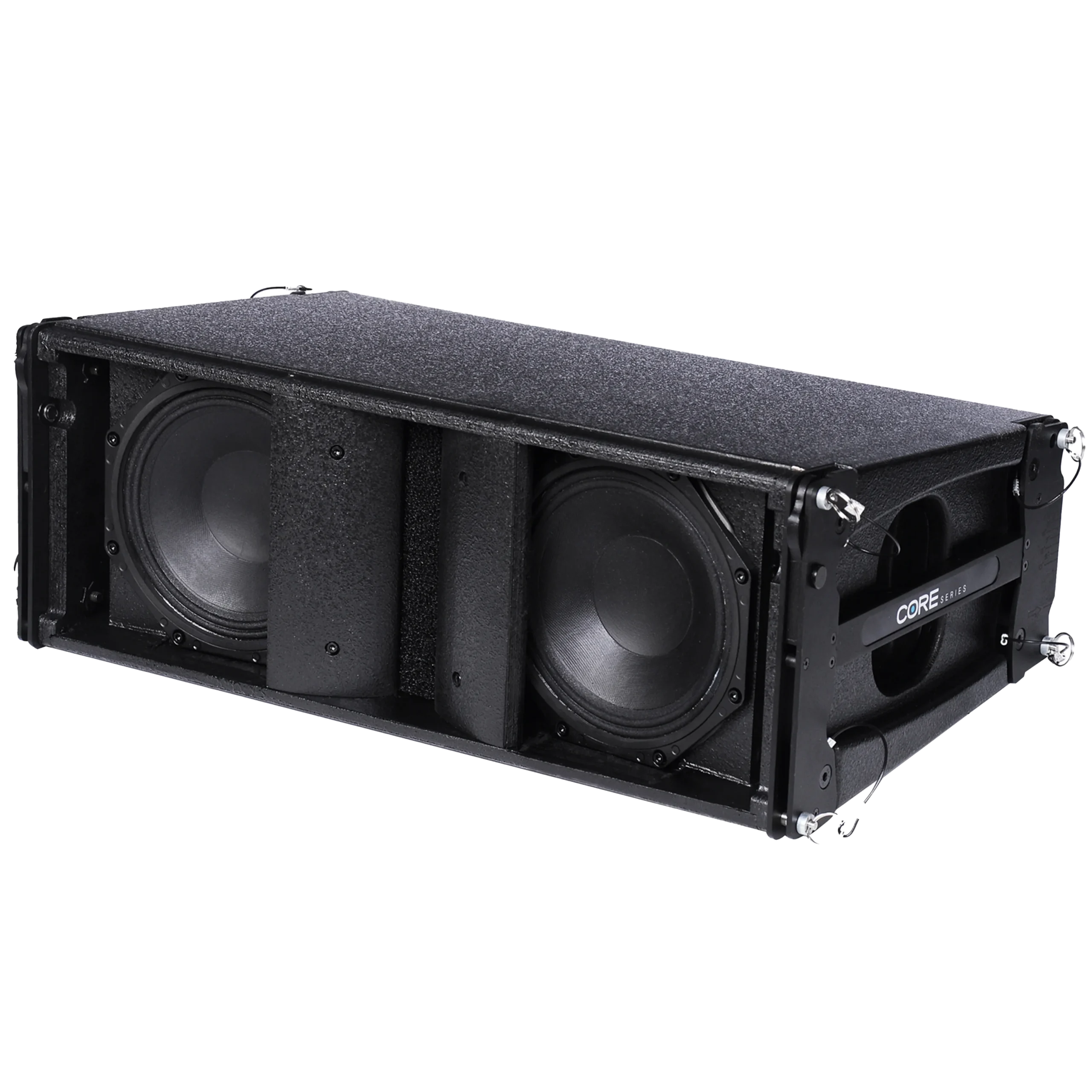

• Innovative Horn-Loaded Design: Features two 8″ Neodymium drivers with 2″ voice coils and a 1.4″ throat, 3″ voice coil Neodymium compression driver. This design produces a low-curvature vertical wavefront with an efficiency of 109 dB at 1 meter for a 1W input, ensuring consistent coverage and clarity.
• Wide Coverage Angles: Provides 100° horizontal and 10° vertical coverage, allowing for flexible array configurations and optimal sound dispersion across various venues.
• High Output Capability: Delivers a maximum SPL of 136 dB, making it suitable for a wide range of live sound reinforcement applications.

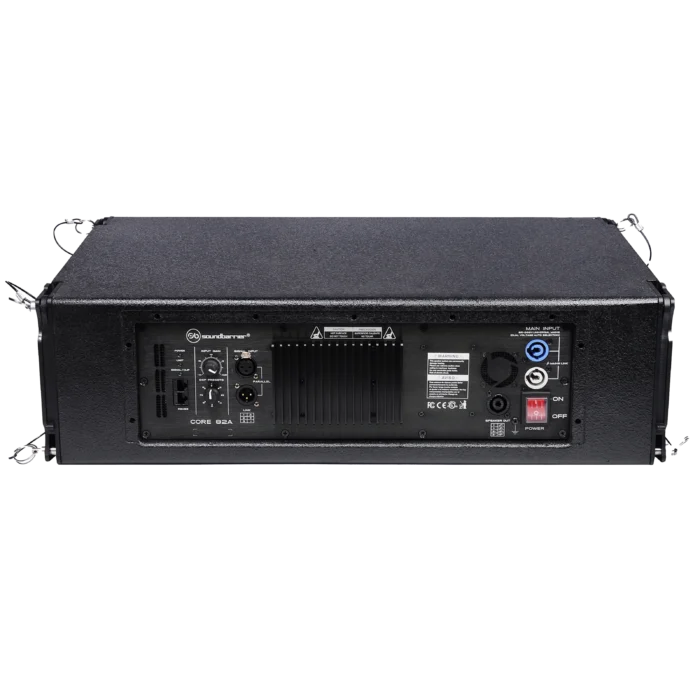

• Integrated Class D Amplifier: Equipped with a two-channel, 1000W RMS Class D amplifier, specifically designed to power its corresponding passive cabinets, the CORE 82P. It can also be used in a full active line array setup if required or preferred.
• Advanced Digital Signal Processing: Incorporates the latest digital signal processor and the NUCLEUS FIR by Sound Barrier™ Loudspeaker Management Software. This software features the FIR Phase Wizard, a step-by-step system phase correction mode that maximizes performance by adapting the system to its surrounding environment.
• Compact and Lightweight: Despite its powerful performance, the CORE 82A maintains a compact and lightweight form factor, facilitating easy transport and setup.

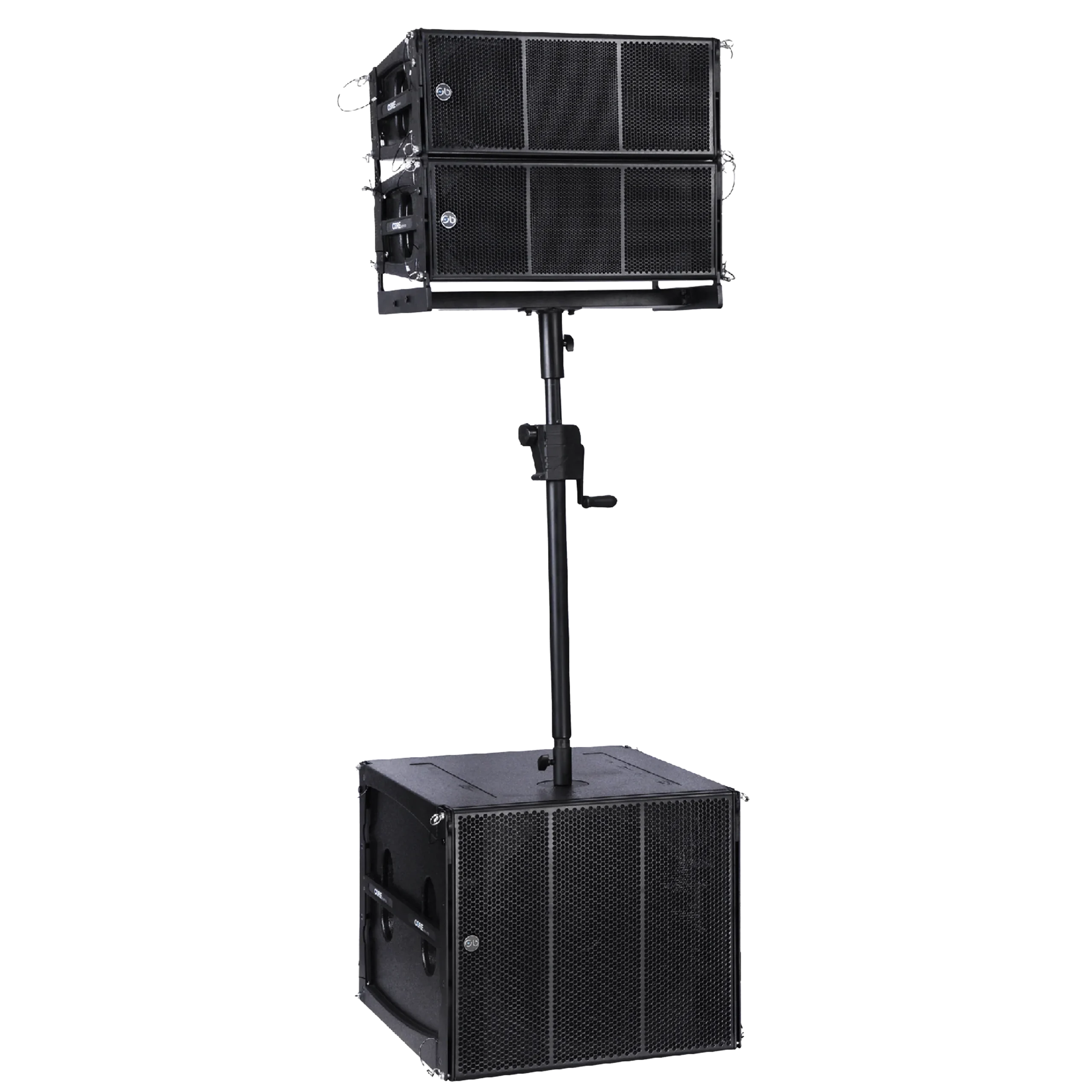

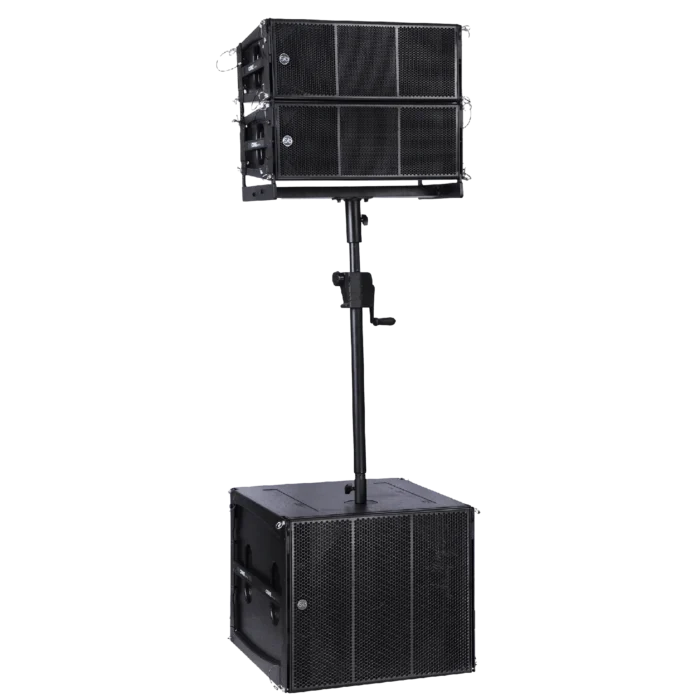

• Flexible Deployment Options: The subwoofer can be flown or ground-stacked, offering flexibility to suit various venue requirements.
• Seamless Integration: Designed to be used with the CORE 82P passive subwoofer, the CORE 82A can also function in a fully active line array setup if preferred.

Specifications

• Frequency Response: 70 Hz – 19 kHz
• Coverage Angles: 100° horizontal, 10° vertical
• Maximum SPL: 136 dB
• Total Power Handling: 2400W peak, 1200W RMS
• Low Frequencies: 1600W peak, 800W RMS
• High Frequencies: 800W peak, 400W RMS
• Cooling: Convection and fan vent
• Connections: PowerCON in/out
• Operational Voltage: Universal mains, 85-268V
• Transducers:
  • High Frequency: 1 x 1.4″ throat, 3″ voice coil, Neodymium magnet
  • Low Frequency: 2 x 8″, 2″ voice coil, Neodymium magnet

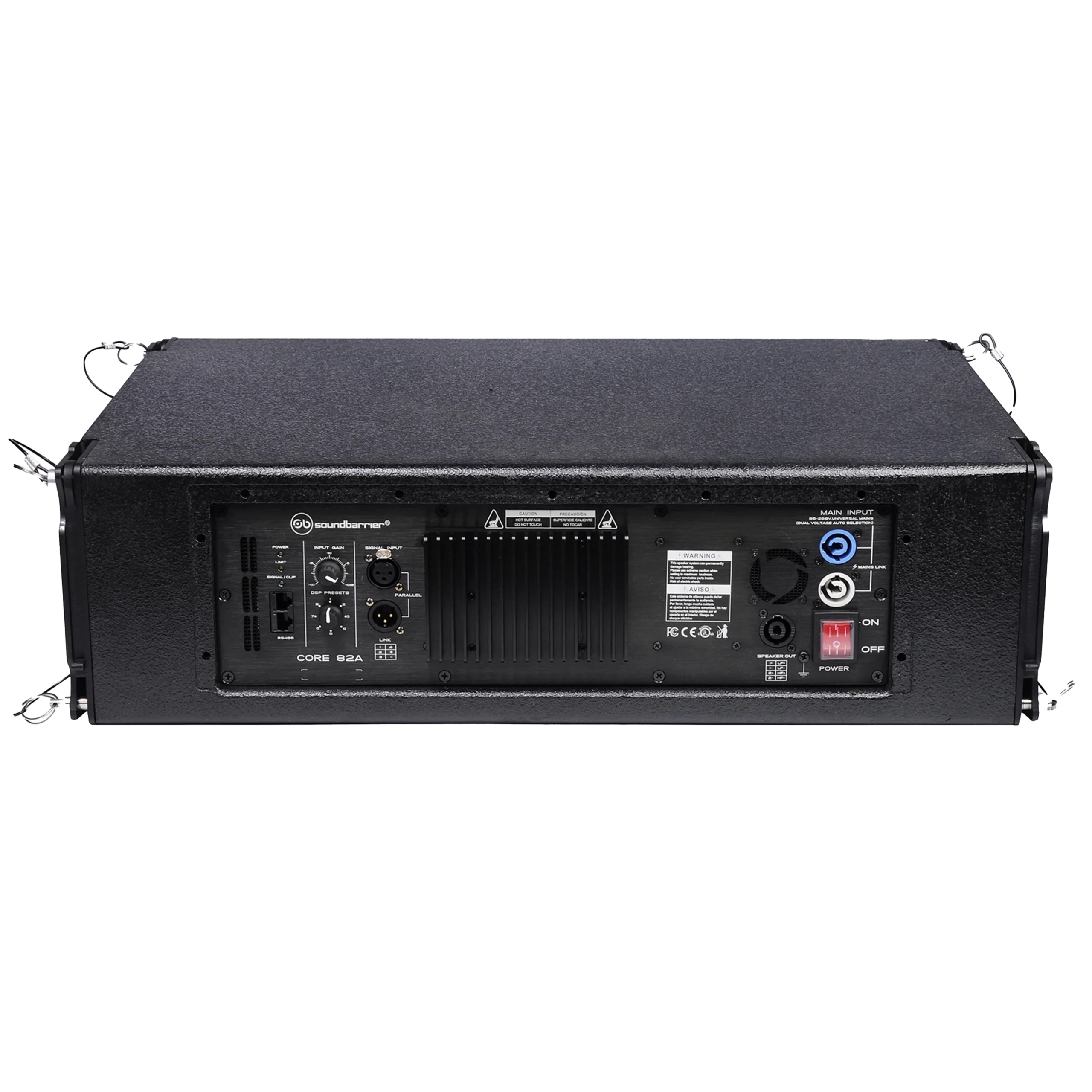

• Input Signal: XLR line input, RJ45 Ethernet
• Output Connectors: XLR loop, NUCLEUS FIR RJ45 Ethernet, Neutrik® Speakon NL4
• Crossover Frequencies: 1260 Hz, -24 dB/oct
• Protection: Over-heat, clip/limiter with gain reduction
• Controls: Input gain, 8 DSP presets
• NUCLEUS FIR: Yes
• Standard Compliance:
  • CE Certification: Yes
  • FCC Certification: Yes
  • UL Certification: Yes
  • RoHS Compliant: Yes
• Construction:
  • Color: Black polyurethane paint
  • Handles: Two side-mounted
  • Material: Birch plywood

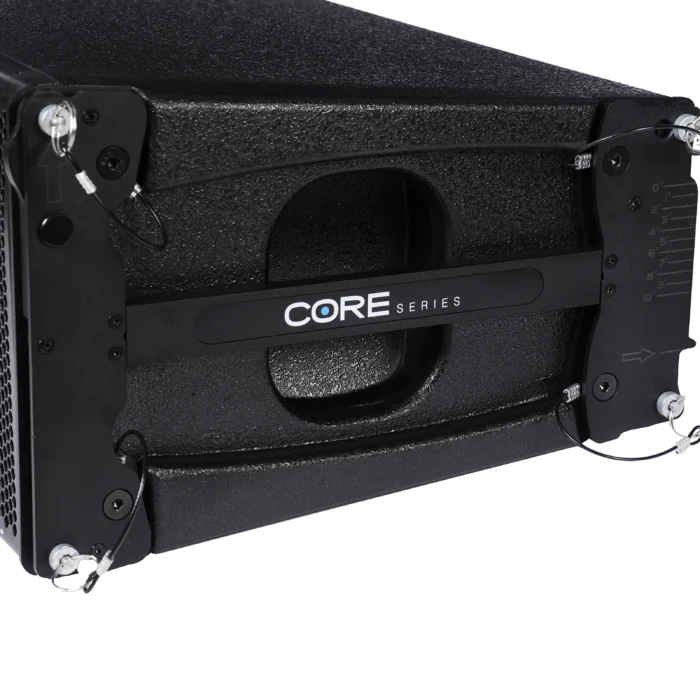

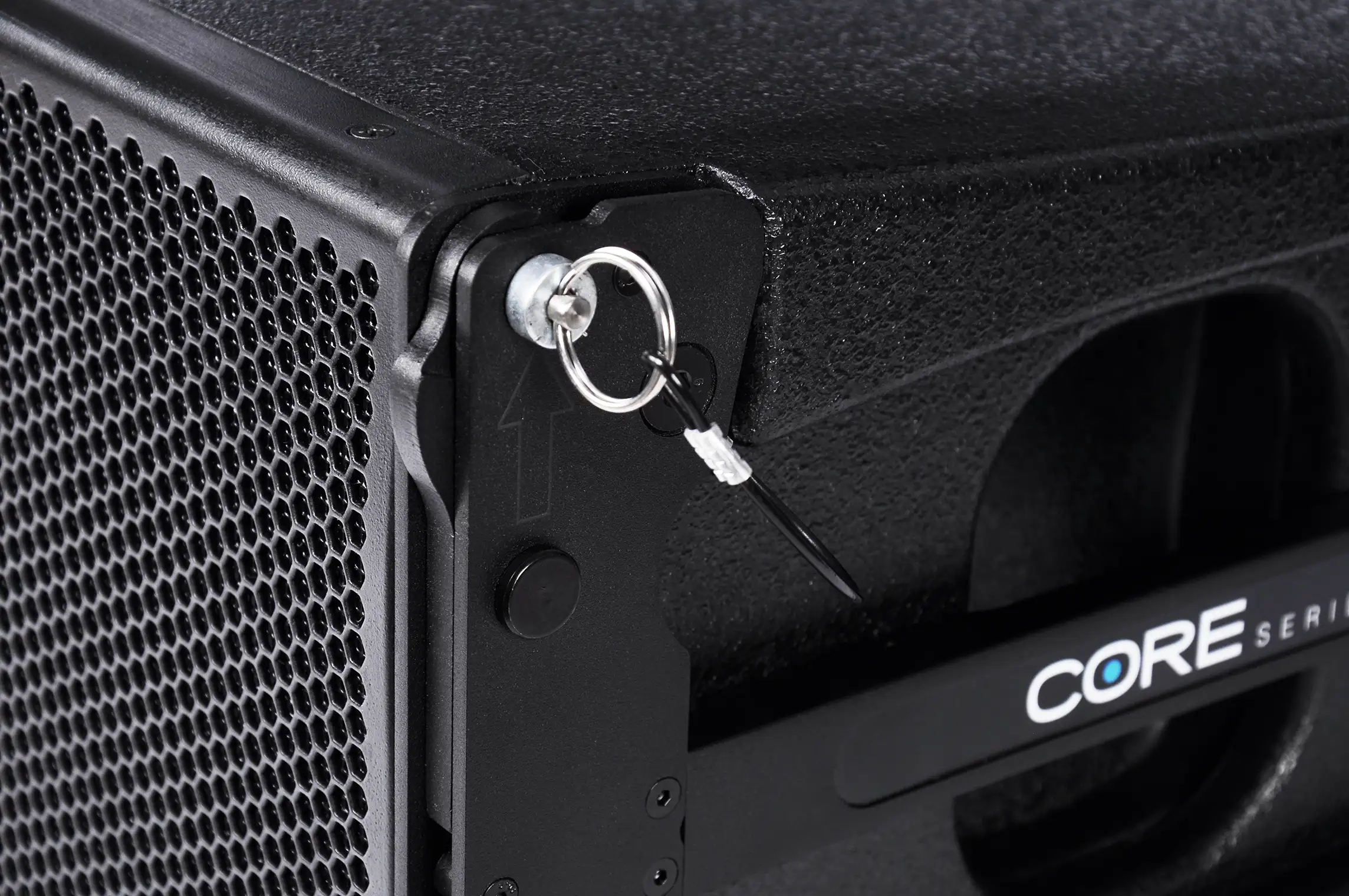

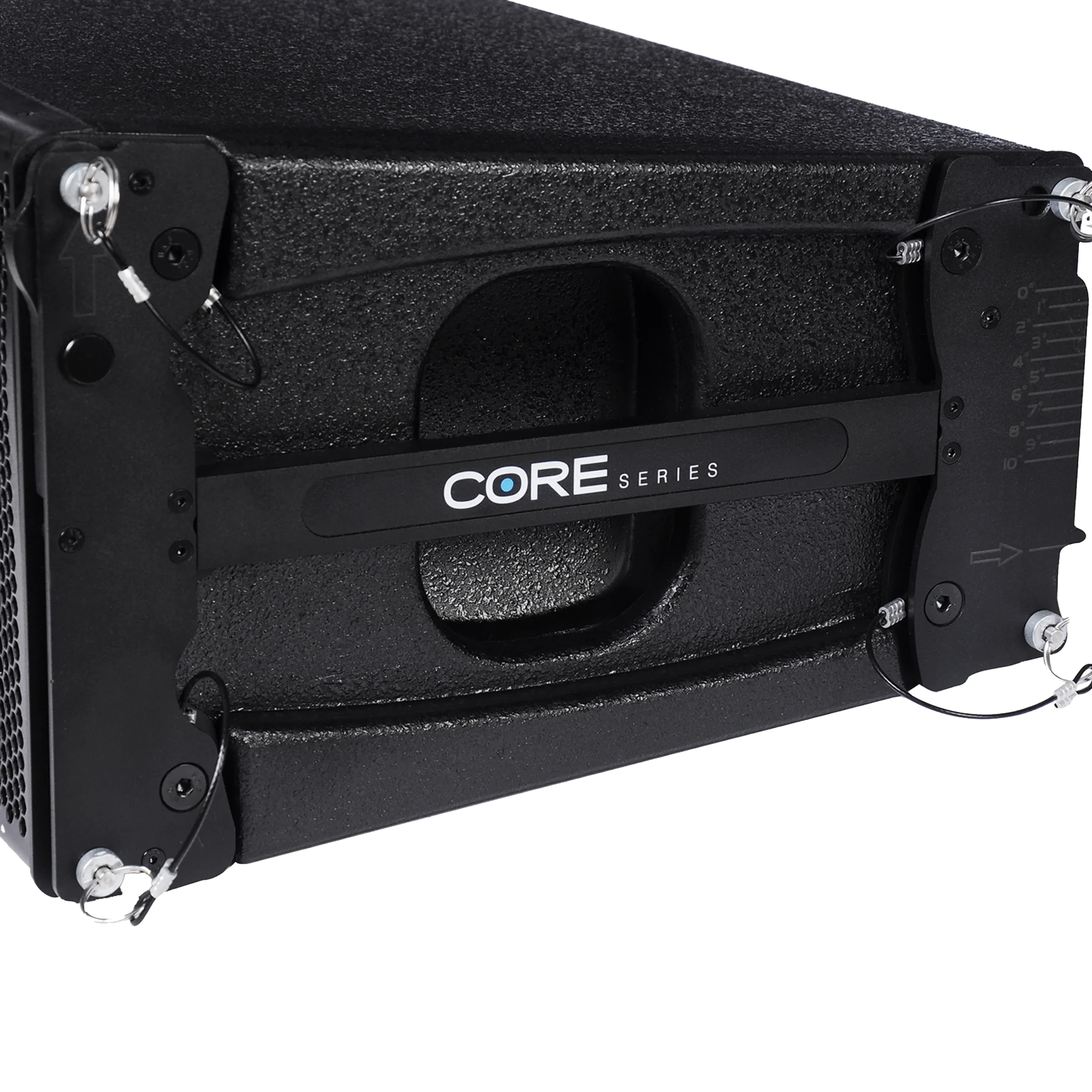

  • Rigging: Fast integral rigging and magnetic pins
  • Grille: Steel with acoustic foam
  • Accessories: Amplifier rain cover
• Dimensions:
  • Width: 25.2 inches (640 mm)
  • Depth: 15 inches (380 mm)
  • Height: 9.5 inches (240 mm)
• Weight: 62.2 lb (28.2 kg)

Applications

• Touring Sound Systems: Ideal for live events requiring high-output audio performance.
• Fixed Installations: Suitable for permanent setups in venues such as theaters, clubs, and auditoriums.
• Mobile Sound Reinforcement: Perfect for mobile DJs and event organizers needing reliable audio support.

Accessories

• CORE82BPSYS: Speaker Mount Bracket System for CORE82
• COREFFSUBAD: Line Array Frame Fly/Ground Stack Bars
• CORE82FF: Fly Bar / Frame
