Sound Barrier CORE82P

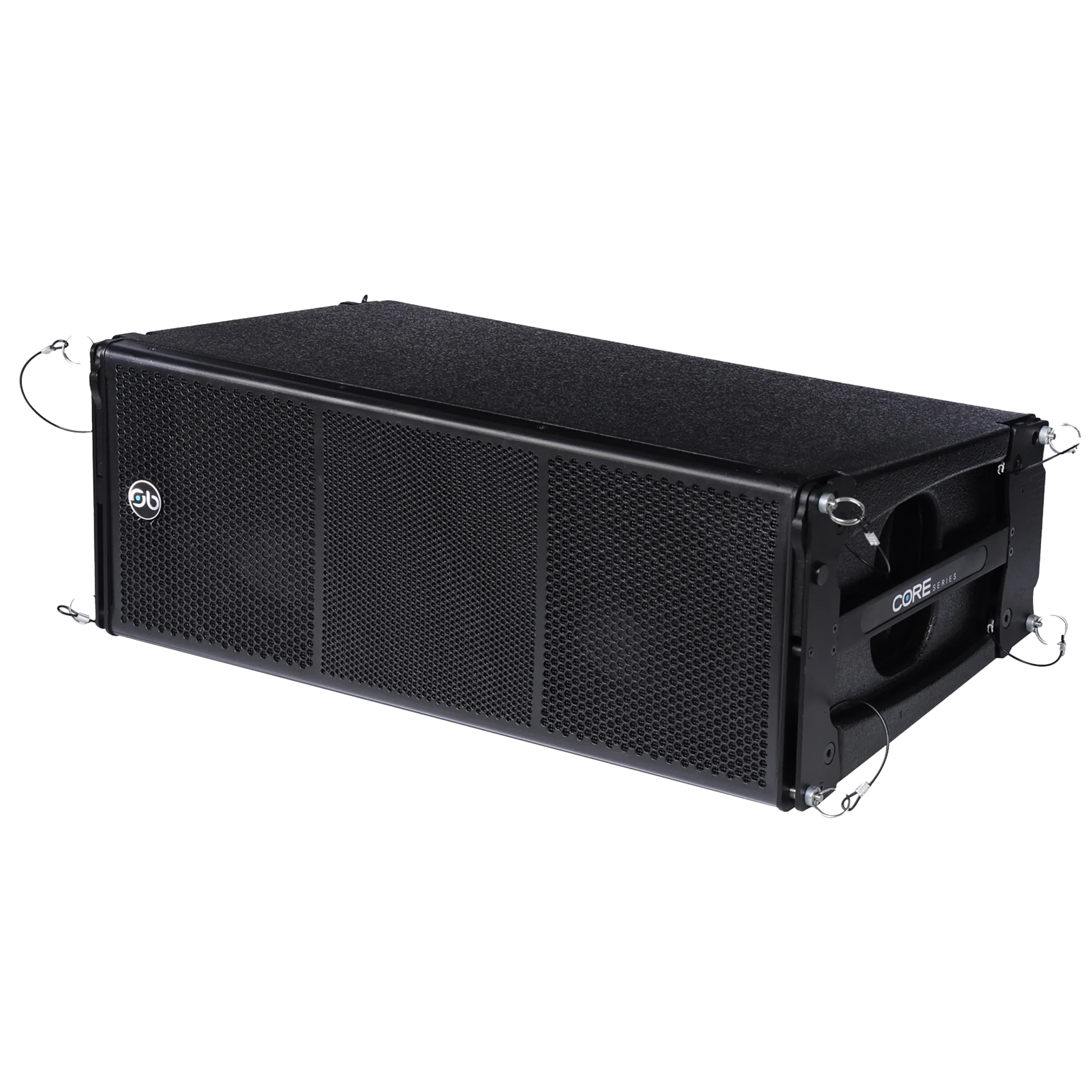

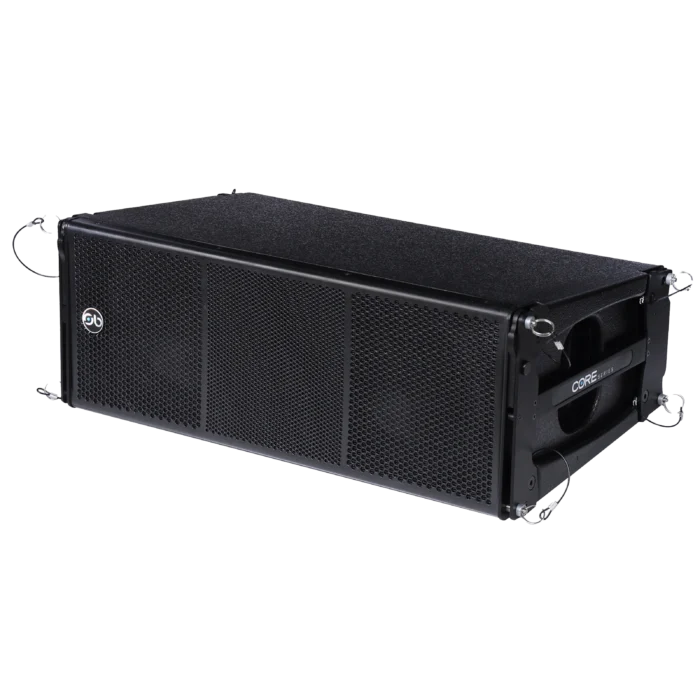

Sound Barrier CORE 82P Passive Line Array Module

Overview

The Sound Barrier CORE 82P is a dual 8-inch, two-way, full-range passive line array module engineered for professional audio applications. Designed to deliver high-fidelity sound with impressive coverage, the CORE 82P is ideal for both touring and fixed installations. It seamlessly integrates with the CORE 82A active line array module, but can also function effectively in passive setups using rack-mounted amplifiers.

Key Features

• Dual 8″ Neodymium Woofers: Equipped with two 8-inch, 2-inch voice coil Neodymium drivers, the CORE 82P ensures robust low-frequency response and high efficiency.
• High-Frequency Compression Driver: Features a 1.4-inch throat, 3-inch voice coil Neodymium compression driver, delivering clear and detailed high frequencies.
• Horn-Loaded Design: Utilizes innovative horn-loading techniques to produce a low-curvature vertical wavefront with an efficiency of 109 dB at 1 meter for a 1W input. This design allows for cabinet enclosures within the array to be splayed up to 10° without introducing gaps in the high-frequency vertical coverage.
• Wide Coverage Angles: Offers 100° horizontal and 10° vertical coverage, ensuring consistent sound dispersion across the audience area.
• Full-Bandwidth System: Despite its compact size, the CORE 82P is a full-bandwidth system and may be used without subwoofers in many applications.
• Seamless Integration: Designed to be used with the CORE 82A active line array module, the CORE 82P can also function in a passive array setup with rack-mount amplifiers if required or preferred.
• Compatible with Subwoofers: For applications requiring extended low-frequency response, the CORE 82P can be complemented by and is directly compatible with the CORE 8218SA (Active 18″ Subwoofer) and CORE 8218SP (Passive 18″ Subwoofer).

Specifications

• Frequency Response: 70 Hz – 19 kHz
• Coverage Angles: 100° horizontal, 10° vertical
• Maximum SPL: 136 dB
• Power Handling:
  • Total: 2400W peak, 1200W RMS
  • Low Frequencies: 1600W peak, 800W RMS
  • High Frequencies: 800W peak, 400W RMS
• Transducers:
  • High Frequency: 1 x 1.4″ throat, 3″ voice coil, Neodymium magnet
  • Low Frequency: 2 x 8″, 2″ voice coil, Neodymium magnet

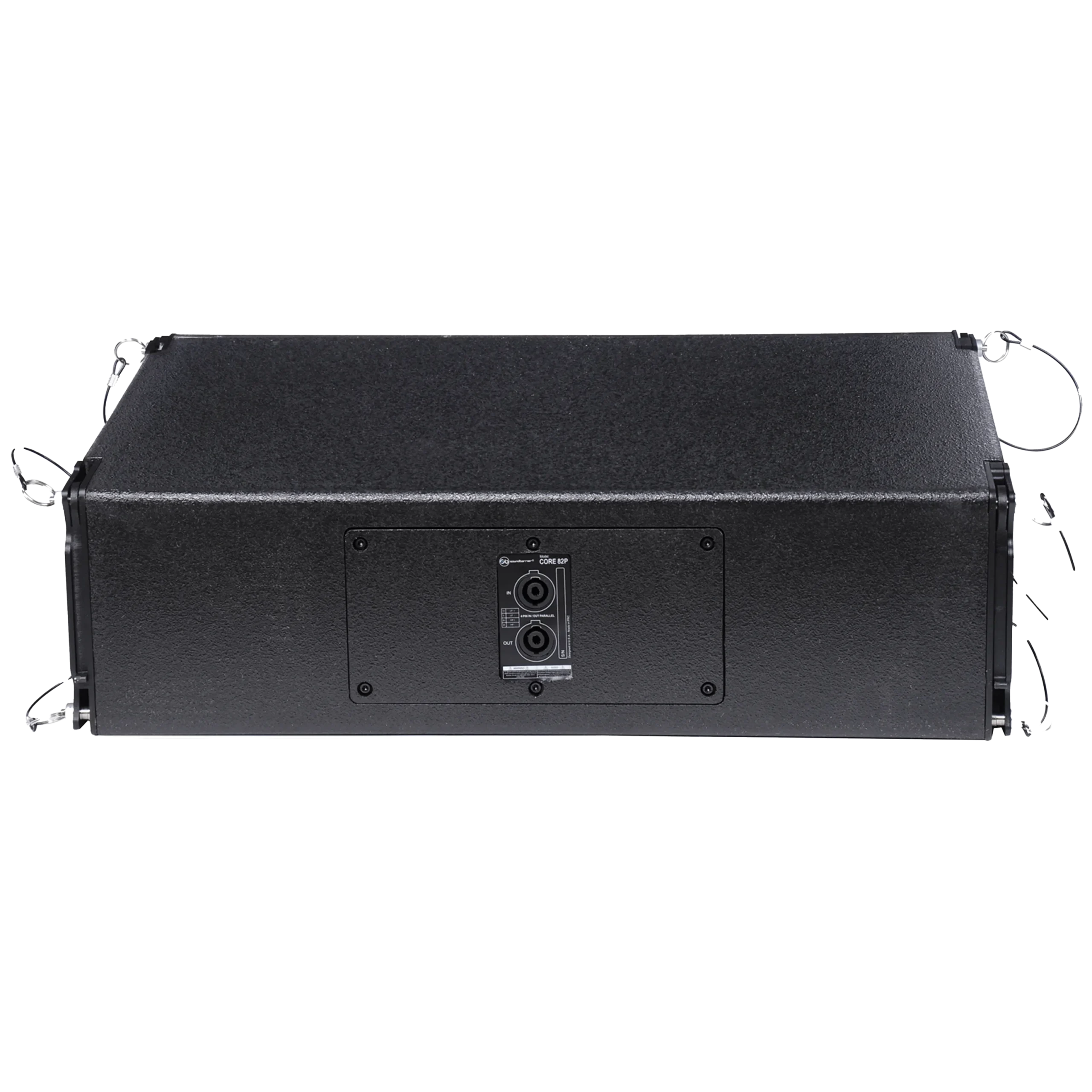

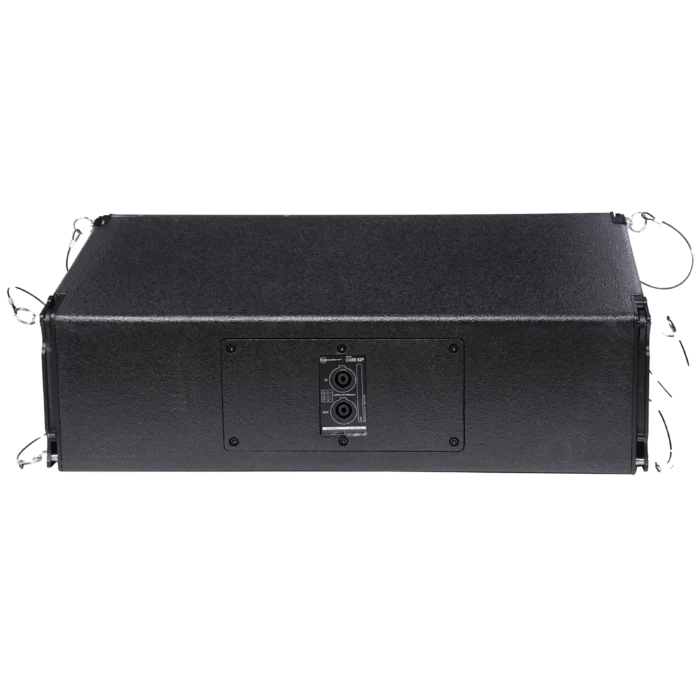

• Input / Output Section:
  • Input Signal: Neutrik® Speakon NL4
  • Output Connectors: Neutrik® Speakon NL4
• Crossover Frequency: 1260 Hz, -24 dB/oct
• Construction:
  • Color: Black polyurethane paint
  • Handles: Two side-mounted handles
  • Material: Birch plywood
  • Rigging: Fast integral rigging and magnetic pins
  • Grille: Steel with acoustic foam
• Dimensions:
  • Width: 25.2 inches (640 mm)
  • Depth: 15 inches (380 mm)
  • Height: 9.5 inches (240 mm)
• Weight: 56.5 lb (25.6 kg)

Applications

• Touring Sound Systems: Ideal for live events requiring high-output audio performance.
• Fixed Installations: Suitable for permanent setups in venues such as theaters, clubs, and auditoriums.
• Mobile Sound Reinforcement: Perfect for mobile DJs and event organizers needing reliable audio support.

Accessories

• CORE82BPSYS: Speaker Mount Bracket System for CORE82
• COREFFSUBAD: Line Array Frame Fly/Ground Stack Bars
• CORE82FF: Fly Bar / Frame

For more information please visit the Sound Barrier CORE 82P product page.
