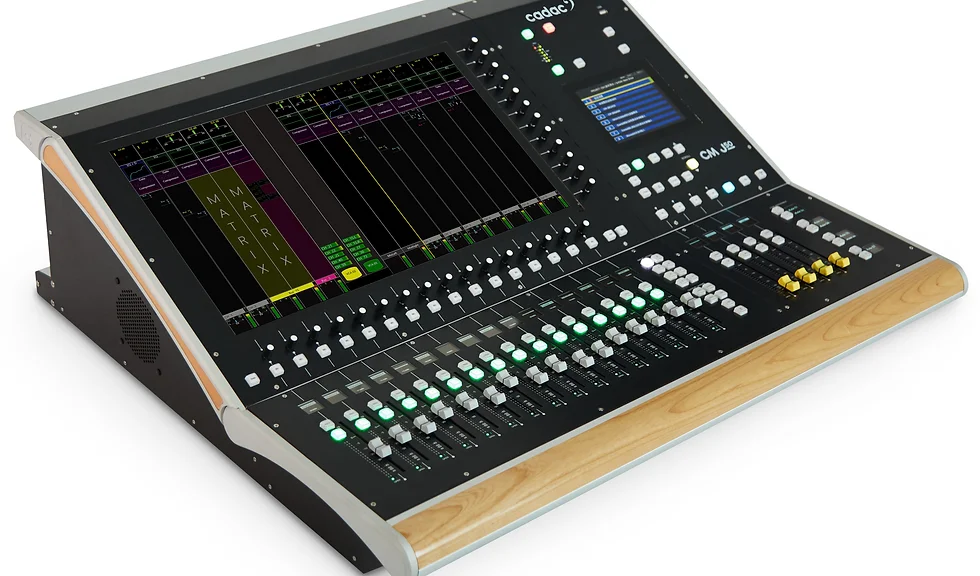

The CM-J50 delivers a unique mix experience and provides a genuine emotional connection to the audio. It delivers greater connectivity, control, and flexibility all within a distinctive form factor that is faster, smaller and lighter than previous generations.

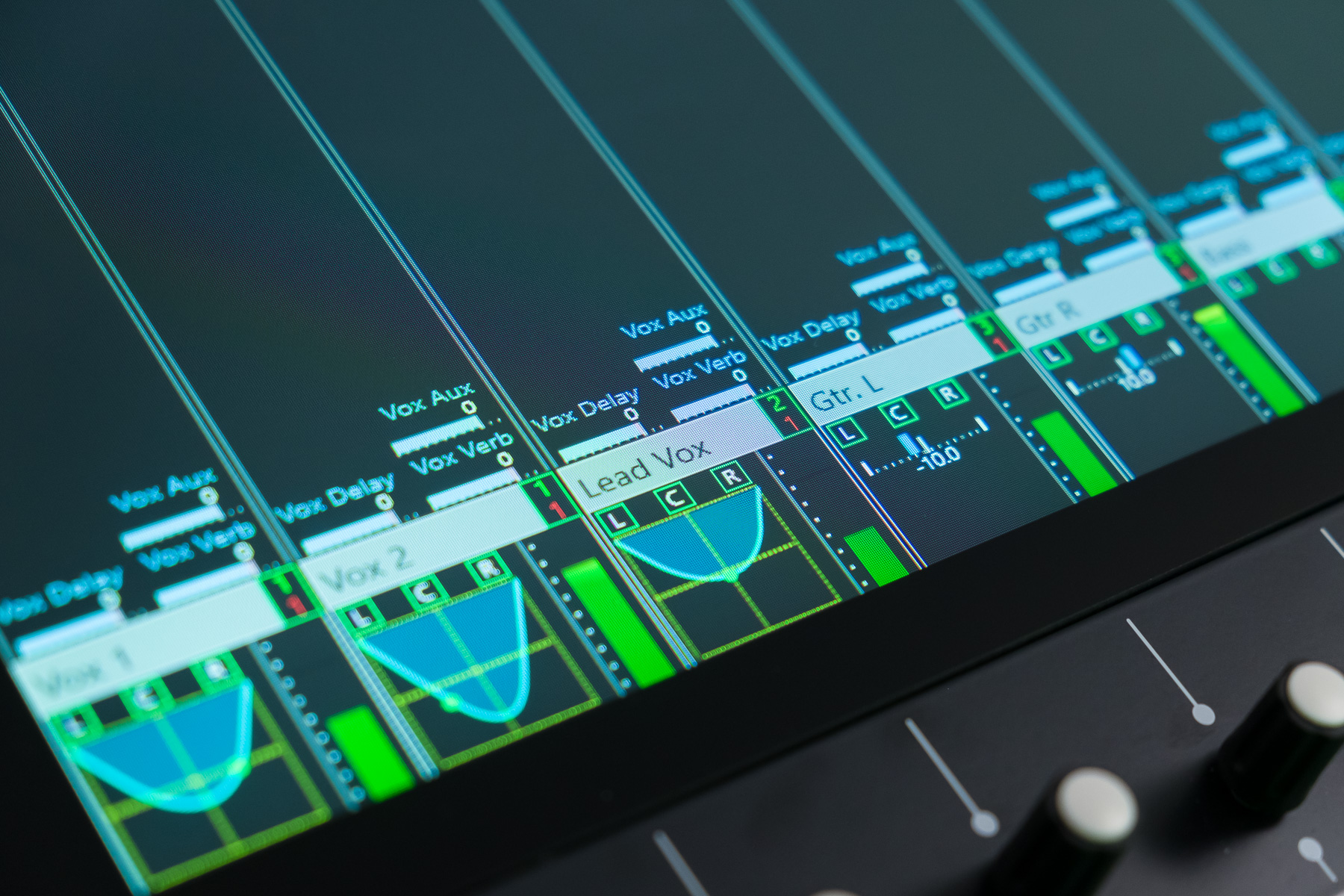

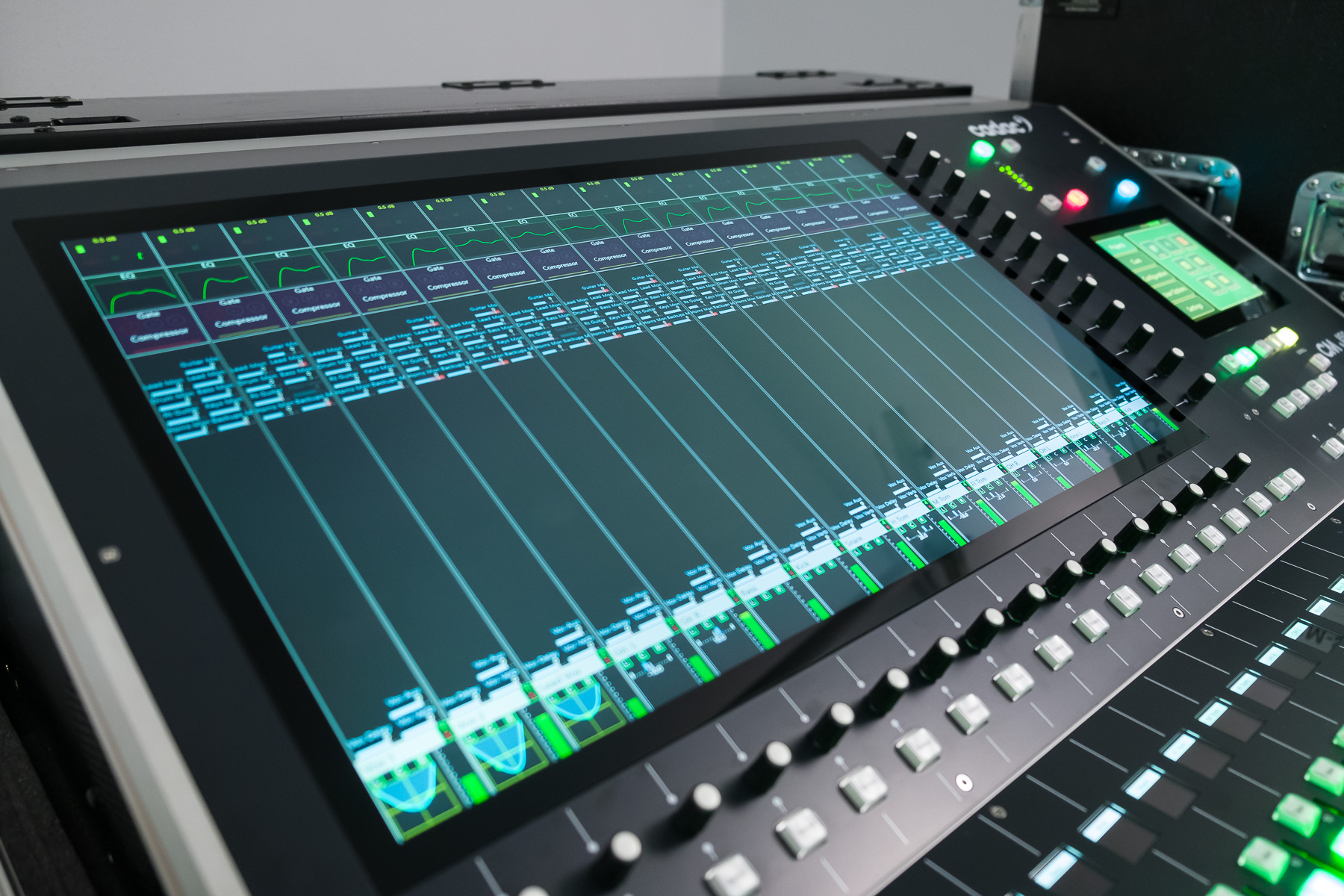

Cadac’s exceptional gesture-based navigation, via an impressively large 23.5-inch optically bonded touchscreen, allows the user to fluidly scroll through the console’s 96 input channels and 56 busses. A simple swipe, touch and turn gives you complete creative control of the audio, with the faders and encoders seamlessly mapping to the screen’s active functions, resulting in a truly intuitive mix experience.
The unique combination of a compact form factor, exceptional user interface, legendary Cadac mic-pre’s, state-of-the art DSP and FPGA processing, coupled with astonishingly low latency, makes the CM-J50 an incredible proposition for those who do not want to compromise on either audio quality or creativity.
Intuitive graphical user interface
Proprietary FPGA / DSP mix platform
96 kHz, 24-bit Delta-Sigma A/D-D/A converters
32/40 bit floating point SHARC processors
23.5” flush fit 16:9 hi-def LCD touch screen
6.5” LCD touch screen for system control
64 x 64 Waves card
24 user definable colour OLED displays
20 segment stereo channel metering

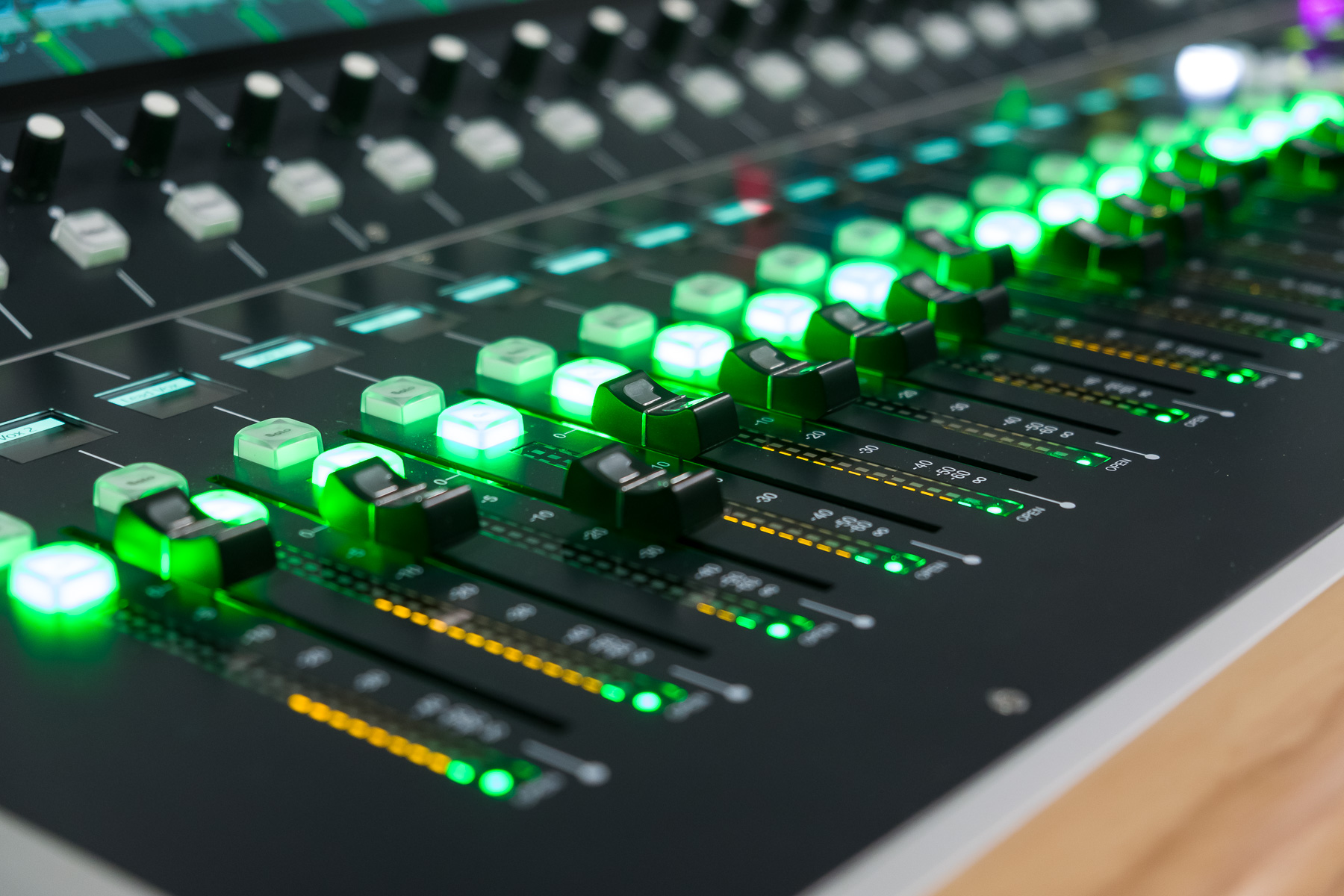

20 touch sensitive 100mm motorised faders
16 fully programmable Mic inputs
8 analogue outputs
8 AES3 inputs and 8 AES3 outputs
2 MegaCOMMS ports on coax (4 x BNCs) or optical (2 x duplex optical LC ports)
Dual internal auto switching PSUs
Sub 0.4 millisecond total system latency
96 input channels
56 busses, 48 are assignable as Groups, Auxes or Matrix in FoH mode
Unique Monitor Mode
Custom Fader Layers
16 VCA groups including ‘VCA unfold’ navigation
16 assignable buttons with OLED displays
16 stereo (or 32 mono) on-board effects
31 band EQ on outputs plus 4 band fully parametric EQ
One Dynamic EQ on each input and output
Compressor / limiter plus gate with side chain filter on all inputs
Compressor / limiter with side chain filter on all outputs
Input and output delays
Snapshot automation system with Cue Ripple and Cue Preview
Dugan Automixer post fade insert for Waves
PC offline editor
iPad remote control
Console Mirroring
Side car mode
