Sound Barrier CORE102P

Sound Barrier CORE 102P Passive Line Array Speaker

Product Overview

The CORE102P is a dual 10-inch, two-way, bi-amped passive line array module designed for professional audio applications, including touring and installations. It is specifically engineered to be used with the CORE102A active line array module but can also function in a fully passive setup with rack-mounted amplifiers if preferred. Despite its compact size, the CORE102P offers full-bandwidth performance and can be utilized without subwoofers in many applications. When additional low-frequency extension is required, it is directly compatible with the CORE10218SA (Active 18″ Subwoofer) and CORE10218SP (Passive 18″ Subwoofer).

Features

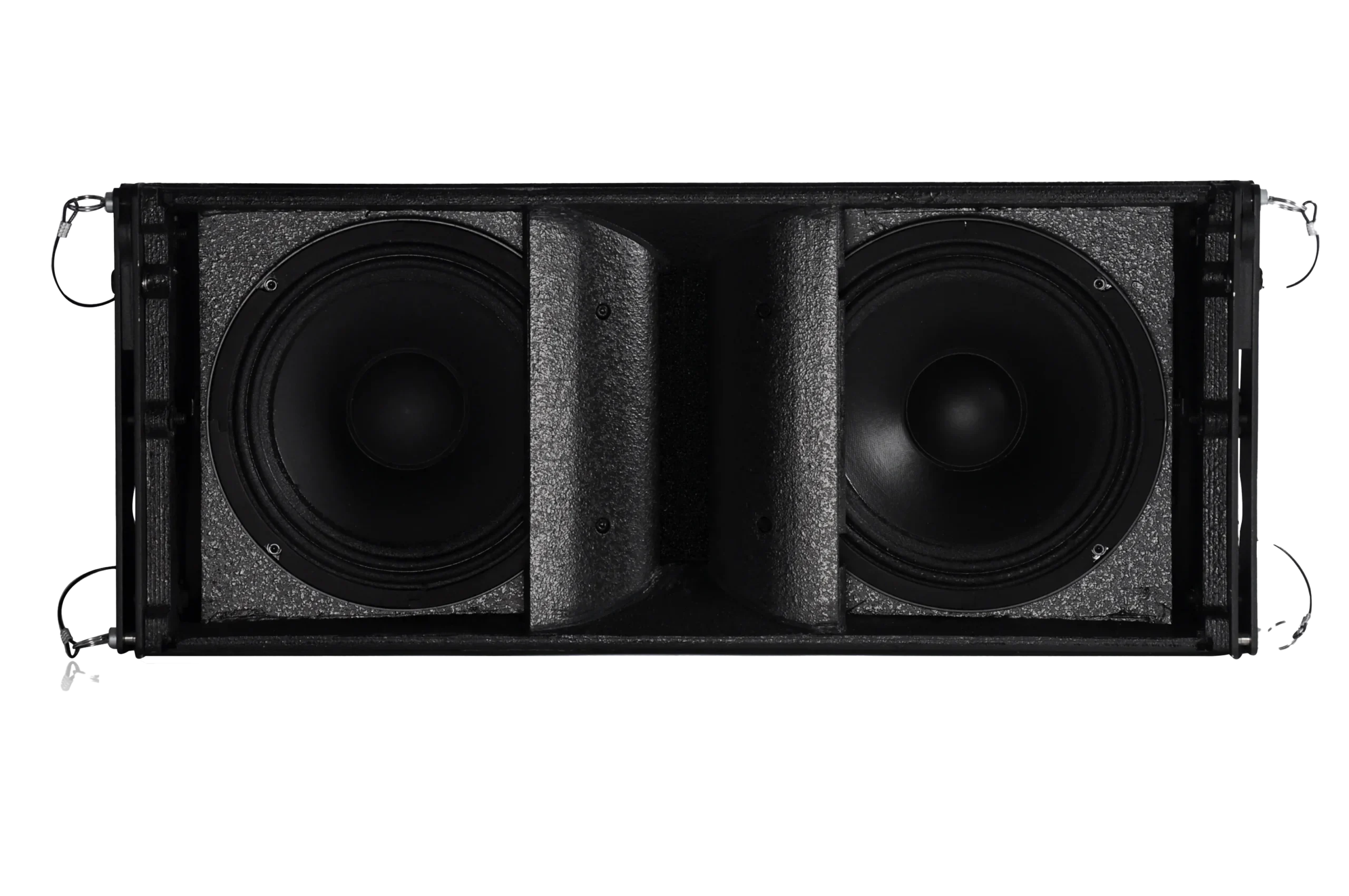

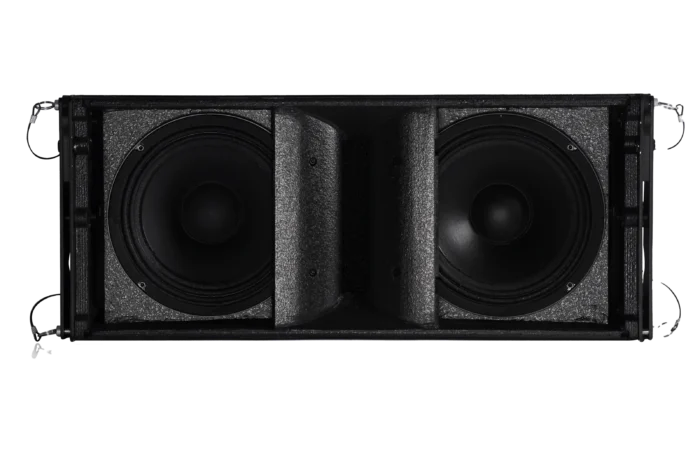

The CORE102P combines line array principles with innovative horn-loading techniques to produce a compelling compact line array with impressive dynamic impact. The low-frequency section comprises two 10-inch Neodymium drivers with 2.5-inch voice coils. The high-frequency section features a 1.4-inch throat, 3-inch voice coil Neodymium compression driver. This configuration produces a low-curvature vertical wavefront with an efficiency of 109 dB at 1 meter for a 1W input. The optimal high-frequency curvature enables the cabinet enclosures within the array to be splayed up to 10° without introducing gaps in the high-frequency vertical coverage.

Specifications

Acoustic Specifications:

• Frequency Response: 65 Hz – 19 kHz
• Coverage Angles: 100° horizontal, 10° vertical
• Maximum SPL: 136 dB

Power Handling:

• Total Power Handling: 3,200W peak, 1,600W RMS
• Low Frequencies: 2,400W peak, 1,200W RMS
• High Frequencies: 800W peak, 400W RMS

Transducers:

• High Frequency: 1 x 1.4-inch throat, 3-inch voice coil, Neodymium magnet
• Low Frequency: 2 x 10-inch, 2.5-inch voice coil, Neodymium magnet

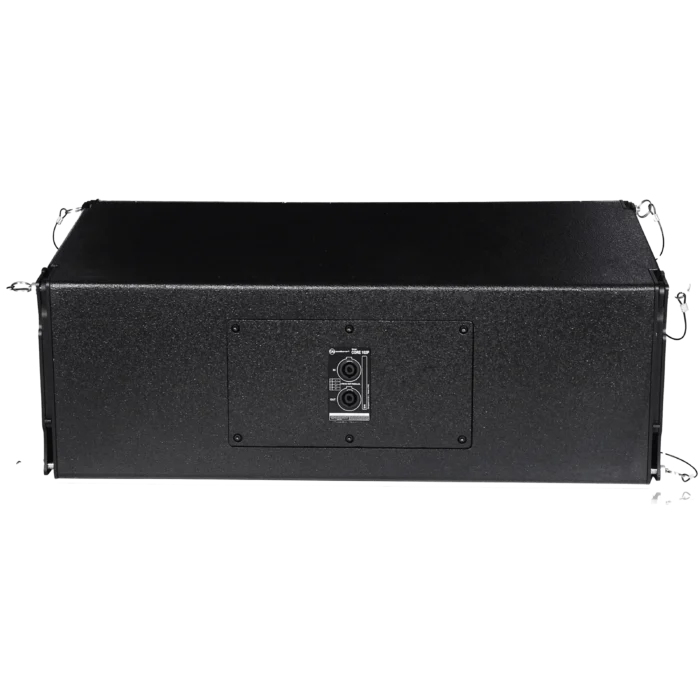

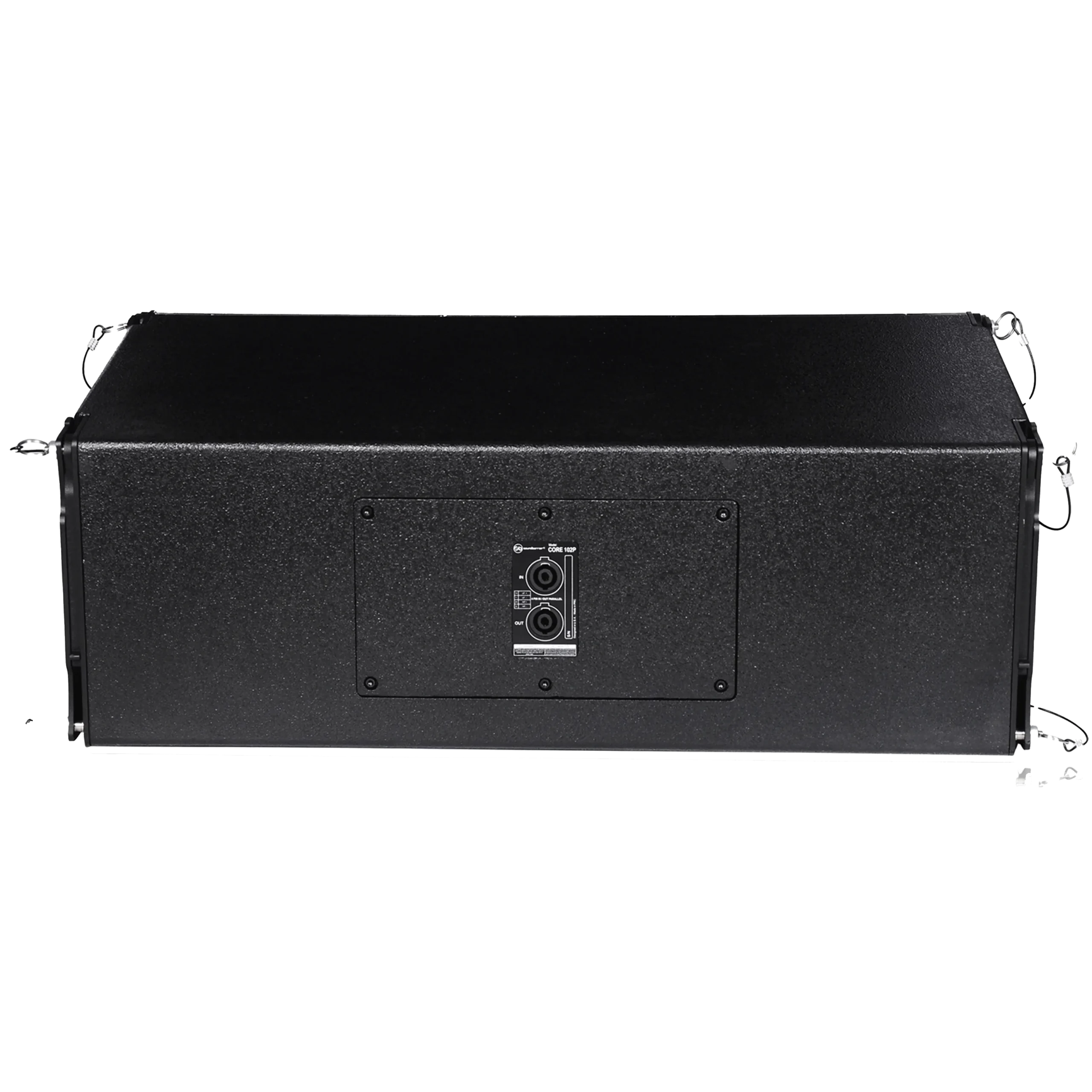

Input / Output Section:

• Input Signal: Neutrik® Speakon NL4
• Output Connectors: Neutrik® Speakon NL4

Processor Section:

• Crossover Frequencies: 1,260 Hz, -24 dB/oct
• Protection: Over-heat, clip/limiter with gain reduction
• Controls: Input gain, 8 DSP presets
• NUCLEUS FIR: Yes

Construction:

• Color: Black polyurethane paint
• Handles: Two side-mounted handles
• Material: Birch plywood
• Rigging: Fast integral rigging and magnetic pins
• Grille: Steel with acoustic foam

Dimensions:

• Width: 28.7 inches (730 mm)
• Depth: 15.8 inches (400 mm)
• Height: 12.2 inches (310 mm)
• Weight: 70 lb (31.6 kg)
