FBT X-Sub 118SA
The FBT X-Sub 118sa is a powerful and versatile subwoofer designed to deliver high-performance low-frequency reinforcement for various audio applications. It features a high-excursion 18″ woofer with a 3″ voice coil, providing impressive SPL and punch. The subwoofer’s frequency response ranges from 38Hz to 120Hz, ensuring deep, impactful bass.
Equipped with a 1200W Class D amplifier and a DSP processor with four presets, the X-Sub 118sa allows for extensive customization of low frequencies and mid-high values. The DSP includes two distinct responses with two different crossover frequencies, offering flexibility for different sound environments.

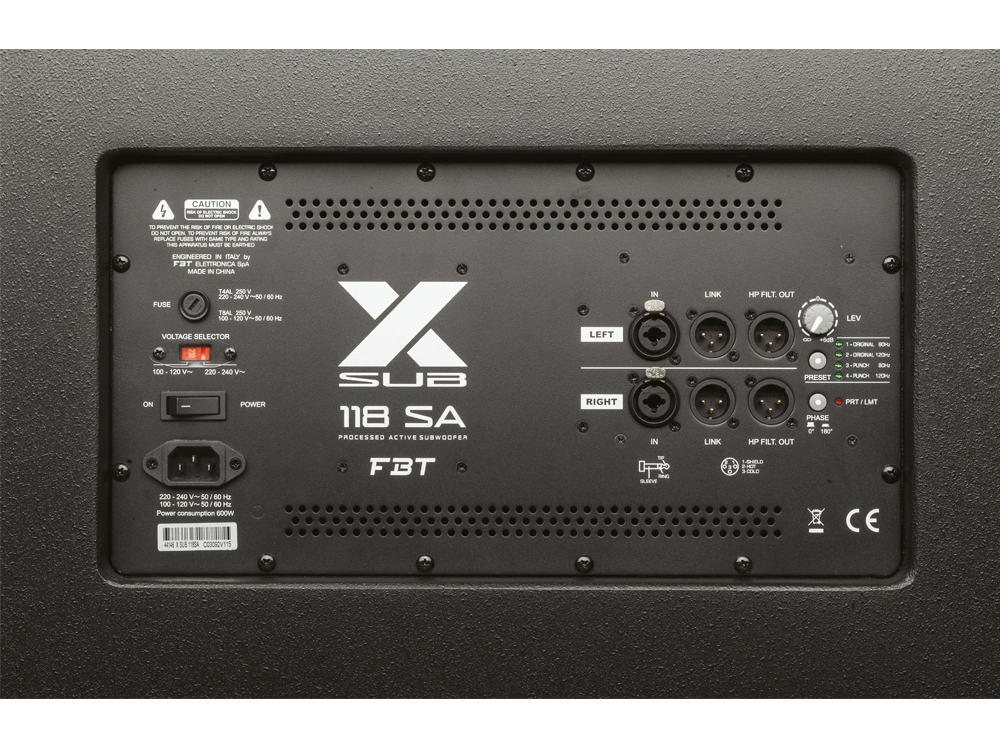

The robust 18mm multilayer birch plywood enclosure is designed to withstand diverse applications, from touring to permanent installations. The cabinet features a scratch-resistant finish, an M20 stand mount, and optional 100mm wheels for easy mobility. The control panel includes XLR inputs and stereo links, XLR Hi-Pass out, volume control, presets, phase adjustment (0°-180°), and status LEDs.
The FBT X-Sub 118sa is an ideal choice for enhancing and extending the low-end range of the X-Pro or X-Lite series, making it a versatile and reliable addition to any audio setup.
X-Sub 118SA Technical Specifications
-
Configuration: bass reflex
-
Built-in amplifier LF/HF: 1200W
-
Built-in amplifier peak LF/HF:
-
Frequency response: 38Hz – 120Hz (@-6dB)
-
Low Frequency woofer: 18” / 3” coil
-
Maximum SPL cont/peak: 136dB half space
-
Dispersion: omnidirectional
-
Input impedance: 22 kOhm
-
Crossover Frequency:
-
AC Power requirements:
-
Input connector: XLR with loop
-
Power cord: 9.8ft / 3mt
-
Net Dimension (WxHxD): 20,07 x 25,78 x 24,80 / 510 x 655 x 630
-
Net Weight: 74,95 lbs / 34kg
