Centerline CA10STW Stage Monitor 10″ Coaxial 2- Way Standard Wedge
Overview
The Centerline CA10STW Stage Monitor delivers powerful, balanced sound with a cabinet size designed for medium to large performance spaces. Based on the same design principles as the CA8MW, the CA10STW offers enhanced output and deeper low-frequency extension. Designed with musicians and engineers in mind, its full, natural tone and smooth response across the frequency range is a step up in power and clarity, making it the ideal choice for professional stage setups.
Key Features
-
10″ coaxial 2-way wedge monitor for superior sound quality
-
Balanced frequency response with extended low end
-
High SPL capability for larger stage applications
-
Rugged 13-ply marine grade plywood construction with black Polyurea coating for durability
-
Multiple angle options (30°, 60°, and 90°) for flexible stage placement
-
Reliable 5-year manufacturer warranty
Technical Specifications
| Specification | Details |
|---|---|
| Coverage Pattern | 70° conical |
| Frequency Range | 70 Hz – 20 kHz (±3 dB) |
| Sensitivity (1m) | 97 dB SPL |
| Maximum Output | 122 dB SPL continuous / 127 dB SPL program |
| Input Power Rating | 250W continuous / 450W program |
| Nominal Impedance | 8 ohms |
| Recommended Filter | 70 Hz HP @ 24 dB Butterworth |
| Drivers | 1 × 10″ Coaxial |

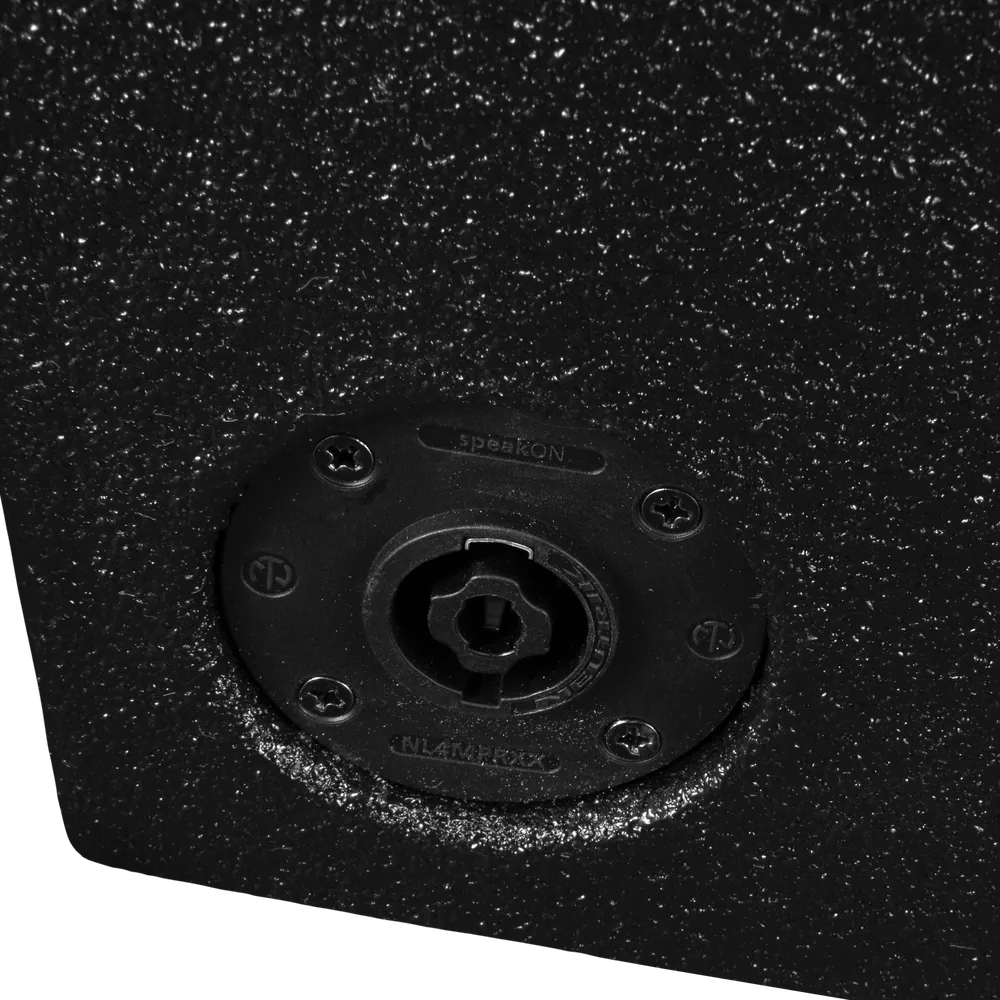

| Connectors | 2 × NL4 (Pins 2+/2– wired pass-through) |
| Enclosure Material | 13-ply marine grade void-free plywood |
| Finish | Black Polyurea coating |
| Angles | 30°, 60°, 90° |
| Weight | 26 lbs |
| Dimensions (H×W×D) | 16 × 16 × 14 in |
| Warranty | 5 years |
Why Choose the CA10STW?
The Centerline CA10STW Stage Monitor is a professional-grade monitor with the same DNA as the CA8MW, but built for performers who require greater output and extended bass response. With its rugged build, flexible placement angles, and balanced sound, the CA10STW is the perfect stage monitor for medium to large venues demanding clarity, power, and reliability.
