Bluesound Professional HUB – Wireless Audio Source Adapter for BluOS Ecosystems
HUB Overview
The Bluesound Professional HUB is a versatile network accessory designed to integrate both analog and digital audio sources into a BluOS-enabled system. This device allows for seamless streaming of various audio inputs, such as TVs, turntables, and CD players, across multiple zones without the constraints of physical wiring.
HUB Features
-
- Multi-Source Connectivity: Equipped with five input options—HDMI eARC, Coaxial, Digital Optical, Stereo Analog, and a moving magnet Phono stage—for flexible source integration.
- Simultaneous Streaming: Capable of streaming one analog and one digital audio input simultaneously to any Bluesound Professional or BluOS players on the network.
- Network Integration: Connects to the network via dual-band Wi-Fi (2.4/5GHz) or Gigabit Ethernet for reliable performance.
- Compact Design: Features a sleek, matte satin black finish with dimensions of 143 x 153 x 45mm (W x D x H), making it suitable for various installation environments.
- User-Friendly Operation: Easily select the HUB as an audio source through the BluOS app, compatible with iOS, Android, Windows, and macOS.
HUB Specifications
-
-
Audio & Operating System
-
Operating System: BluOS
-
Control System Integrations: Control4, Crestron, URC, RTI, ELAN, Lutron (via software update)
-
Simultaneous Audio Streams: 2 per HUB (1 analog, 1 digital)
-
Maximum Number of Units: 4 HUBs on a single network (8 simultaneous streams)
-
Native Sampling Rates: Up to 192 kHz
-
Bit Depth: 16–24 bits
-
Signal-to-Noise Ratio: >100 dB (Line input), >80 dB (Phono MM input)
-
Distortion: <0.03% (20–20 kHz, -1dBFS output)
-
Frequency Response: 20–20 kHz ±0.3 dB; 50 kHz -3 dB
-
-

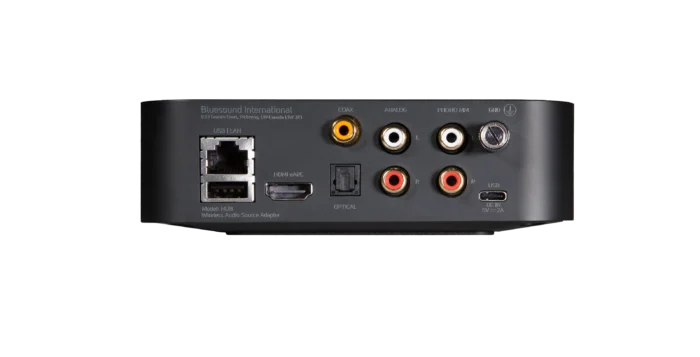

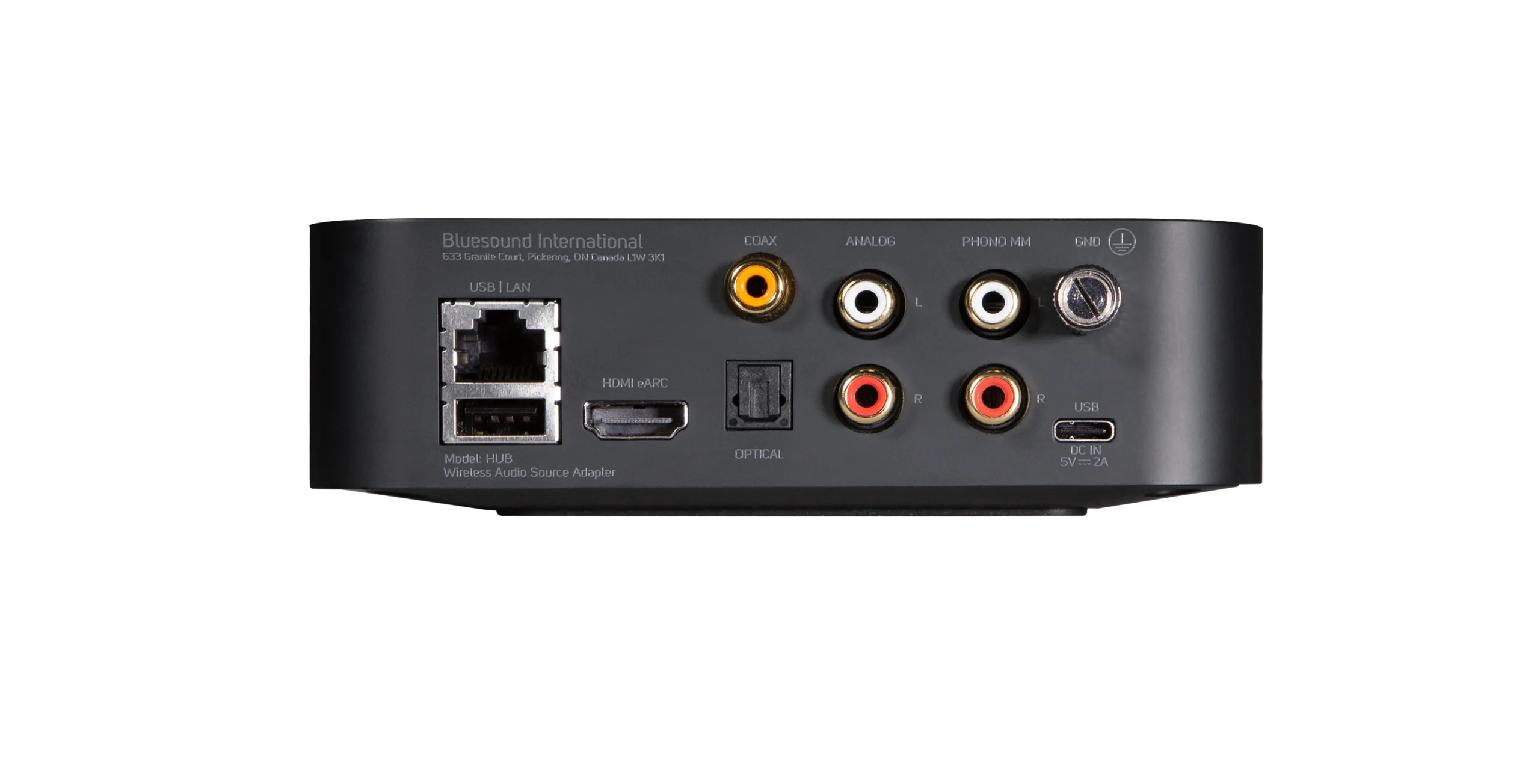

Connectivity
-
Power Supply: Universal USB-C power adapter (Input: 100–240V AC/0.3A, Output: 5V/2A)
-
Ethernet/LAN: Ethernet RJ45, GigE 1000 Mbps
-
Wi-Fi: Built-in Wi-Fi 5 (802.11ac), 2.4/5GHz
-
Analog Line Input: 1 x Stereo RCA
-
Phono Input: 1 x Stereo RCA (Moving Magnet)
-
Optical Input: 1 x TOSLINK digital optical
-
Coaxial Input: 1 x RCA (75 ohms)
-
HDMI Input: HDMI eARC with CEC
-
USB Input: Type A (for BluOS firmware upgrade only)
-
Audio Output: Network
-
-
Features
-
Power Supply: 100–240V AC, 50/60Hz
- Net Weight: 2.7 kg (5.9 lbs)
-
Standby Power Consumption: 6W (Network Standby Mode)
- Dimensions (W x H x D): 480 x 46 x 234 mm (18 7/8 x 1 13/16 x 9 1/4 inches)
-
-
General
-
Finish: Black; Matte Satin Paint
-
Version: CB130
-
Product Dimensions: 143 x 153 x 45mm (W x D x H)
-
Weight: 0.63 kg / 1.39 lbs
-
-
Applications
-
- Retail Stores
- Restaurants and Cafés
- Corporate Offices
- Hospitality Venues
- Fitness Centers
- Educational Institutions
- Houses of Worship
What’s Included
-
- 5V Power Adapter
- 3 x International Plug Adapters
- USB-C Power Cable
- Ethernet Cable
- Mounting Template
- Safety/Warranty Guide
- Quick Setup Guide
