CP100 Overview

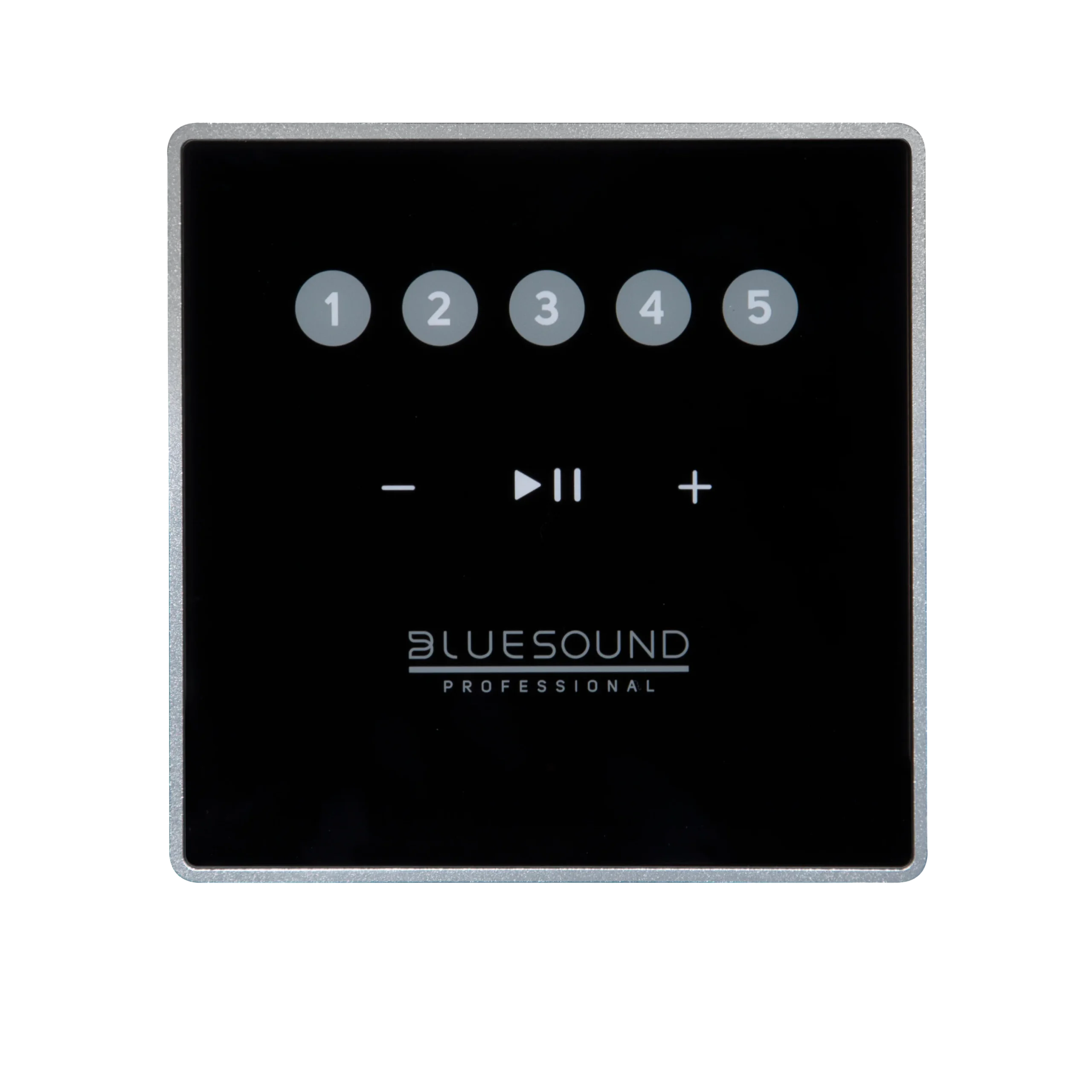

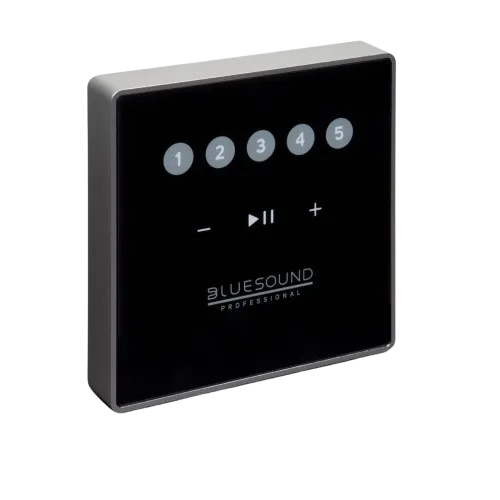

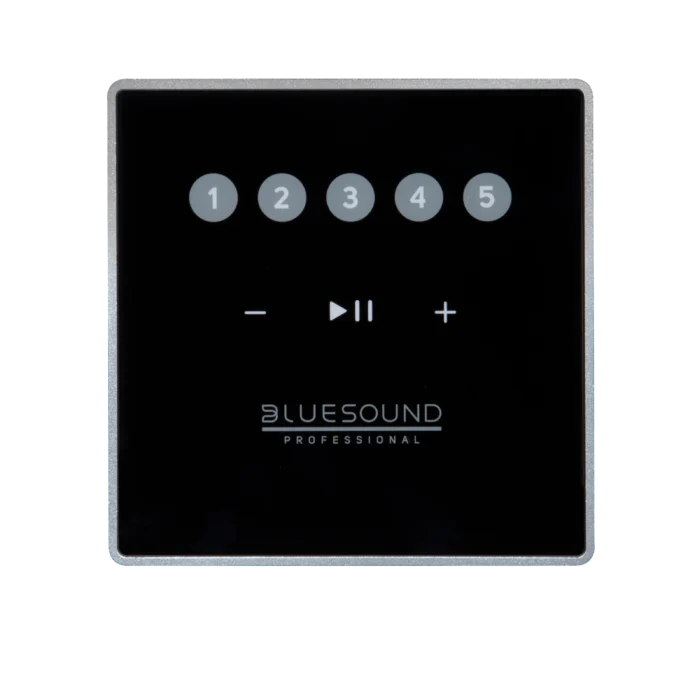

The Bluesound Professional CP100 is a sleek, low-profile wall-mounted control panel designed for seamless integration with all Bluesound Professional players. Featuring an elegant glass surface with illuminated touch-sensitive controls, the CP100 allows users to effortlessly manage playback functions, including volume adjustment, play/pause, mute, and recall of up to five programmable presets within a designated zone.

Engineered for versatility, the CP100 fits flush to the wall and is compatible with a wide variety of international lighting and electrical back-boxes, ensuring ease of installation across diverse commercial environments. Its controls illuminate as needed for visibility in any lighting condition and can be locked to prevent unintended or unauthorized use.

CP100 Features

• • Sleek, Low-Profile Design: Modern aesthetic with a glass surface that allows for easy cleaning.

  • Illuminated Touch Controls: Ensures ease of use in any environment, with controls that light up as needed.

  • Comprehensive Playback Management: Control volume, play/pause, mute, and recall up to five programmable presets.

  • Flexible Installation: Compatible with a wide range of international lighting and electrical back-boxes for flush wall mounting.

  • Secure Operation: Lockable controls to protect against unintended or unauthorized use.

  • Simplified Connectivity: RJ45 connection with Power over Ethernet (PoE) for both power and data, eliminating the need for separate power supplies.

CP100 Specifications

• • Power Supply: IEEE 802.3af-2003 Power over Ethernet (PoE), 15.4 W (minimum of 44 V DC).

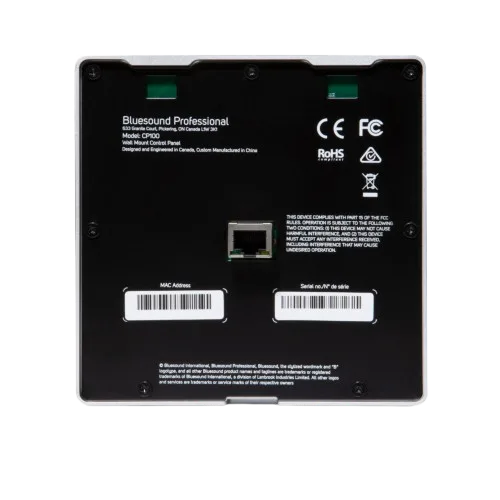

  • Connectivity: RJ45 Ethernet port for network connection and PoE power.

  • Control Capacity: Up to 8 buttons, including 5 presets, play/pause, and volume up/down.

  • Illumination: All buttons are backlit for visibility in various lighting conditions.

  • Mounting: Designed for flush wall mounting; compatible with various international back-boxes.

  • Dimensions (W x H x D): 13.5 x 13.5 x 2.25 cm (5.3 x 5.3 x 0.88 inches).

  • Weight: 0.25 kg (0.55 lbs).

  • Compliance: RoHS Compliant.

Ideal Applications

• • Retail Stores

  • Restaurants and Cafés

  • Corporate Offices

  • Hospitality Venues

  • Fitness Centers

  • Educational Institutions

  • Houses of Worship

What’s Included

• • 1 x CP100 Wall Mount Control Panel.

  • Mounting Bracket.

  • Screw for installation.

  • Quick Setup Guide.

  • Important Safety Instructions.
