Bluesound Professional BSP500 Network Streaming Speaker (Black)

Bluesound Professional BSP500 – 5.25″ Network Streaming Speaker with PoE+

BSP500 Overview

The Bluesound Professional BSP500 is a network-active loudspeaker featuring integrated streaming capabilities, specifically engineered for both indoor and outdoor commercial installations. Powered via Power over Ethernet (PoE+ and PoE++), it requires only a single wired connection for both power and audio, simplifying installation and reducing cable clutter. Built on the robust BluOS platform, the BSP500 can stream content from local network storage and a wide array of streaming services tailored for commercial use, including SoundMachine, Custom Channels, QSIC, SiriusXM Music for Business, Tunify, and various internet radio stations.

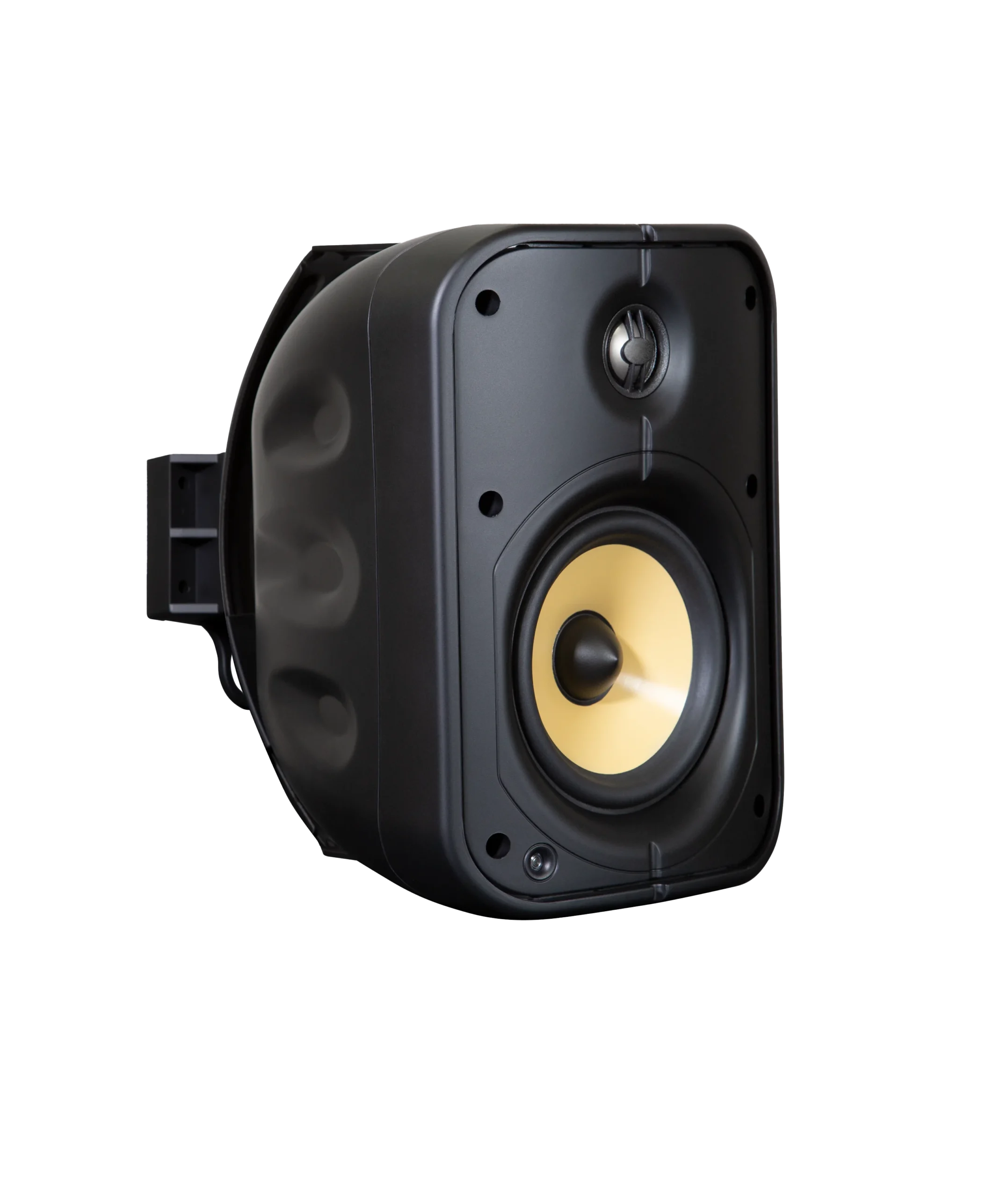

The speaker is equipped with a 5.25” low-frequency driver and a 1” high-frequency driver, powered by a high-efficiency amplifier that includes a low-power standby mode. It delivers a frequency response of 63Hz–23kHz and a total harmonic distortion plus noise (THD+N) of 0.095% at full rated power. With high-efficiency electronics and drive units, the BSP500 provides a maximum sound pressure level (SPL) of 100dB when using PoE++.

BSP500 Features

• • Full-Range Network Streaming Speaker System: Delivers high-quality audio suitable for various commercial environments.

  • Integrated BluOS Platform: Enables streaming from local network storage and numerous commercial streaming services.

  • Power over Ethernet (PoE+, PoE++): Allows a single wired connection for both power and audio, facilitating easy installation.

  • Indoor and Outdoor Use (IP65 Rated): Weather-resistant design suitable for various installation environments.

  • Flexible Configuration: Supports standalone use, stereo pairing, and integration into larger BluOS systems with user-definable grouping.

  • High-Efficiency Amplifier: Provides robust performance with low power consumption.

  • Wall Mounting with Integral Bracket: Includes a bracket allowing 90 degrees of swivel and 170 degrees of rotation.

  • Comprehensive Control Options: Manage settings via PC/Mac, iOS/Android devices, third-party control systems, or the Bluesound Professional CP100 wall mount controller.

  • Security Features: Prevents unauthorized control of the system.

BSP500 Specifications

• • Drivers:

    • Low-Frequency: 5.25” (133mm) Woofer

    • High-Frequency: 1” (25mm) Tweeter

  • Frequency Response: 63Hz–23kHz

  • THD+N: 0.095% at full rated power

  • Maximum SPL: 100dB (using PoE++)

  • Power Output:

    • 20 Watts @ 30 Watts PoE

    • 40 Watts @ 60 Watts PoE

  • Supported File Formats:

    • Standard: MP3, AAC, WMA, OGG, WMA-L, ALAC, OPUS

    • Hi-Res: FLAC, MQA, WAV, AIFF

  • Native Sampling Rates: 32–192kHz

  • Bit Depths: 16–24 bits

  • Connectivity: Wired Ethernet for reliable streaming

  • Control Interfaces: PC/Mac, iOS/Android devices, third-party control systems, Bluesound Professional CP100

  • Mounting: Integral bracket with 90° swivel and 170° rotation

  • Protection Rating: IP65 (suitable for indoor and outdoor use)

  • Weight: 3.2 kg

  • Color Options: Black or White

Ideal Applications

The BSP500 is ideal for commercial environments where high-quality audio and flexible installation are essential, including:

• • Retail Stores

  • Restaurants and Cafés

  • Corporate Offices

  • Hospitality Venues

  • Fitness Centers

  • Educational Institutions

  • Houses of Worship

What’s Included

• • BSP500 Network Streaming Speaker
  • Integral Wall-Mount Bracket
  • Quick Setup Guide
  • Safety Instructions

Shipping & Returns

• • Free Shipping Policy
  • Returns & Warranty

Bluesound Professional BSP500 Downloads

• • BSP500 Manual
  • Quick Start Guide
  • Data Sheet

Learn More About Bluesound Professional

• • Application Guide
