Name: Bluesound Professional BCS250 Passive Ceiling Speaker
SKU: BCS250
Availability: BackOrder

Bluesound Professional BCS250 Passive Ceiling Speaker

$337.00

We Can Get It! This is not a normally stocked item, however, our relationship with Bluesound allows us to get it to you as fast as possible.

Bluesound Professional BCS250 – Premium Passive Ceiling Speaker for Commercial Installations

BCS250 Overview

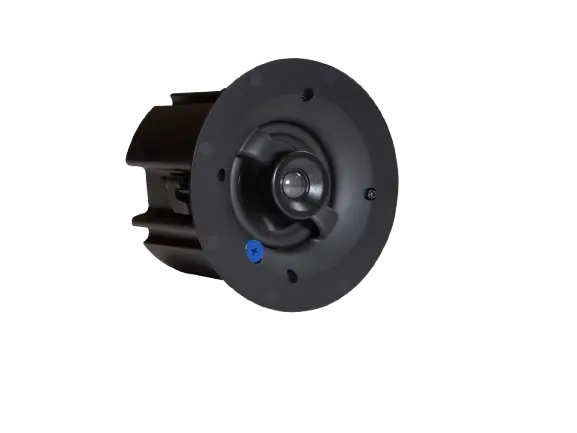

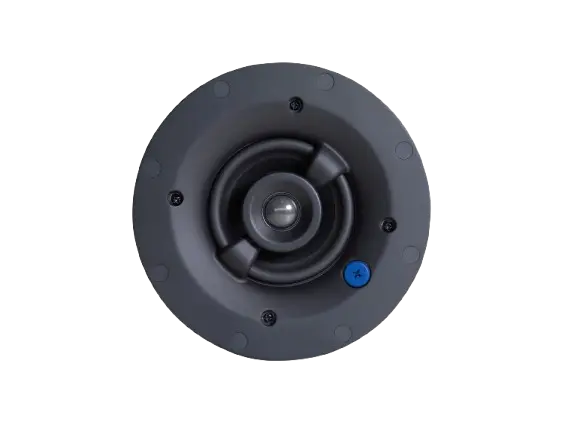

The Bluesound Professional BCS250 is a high-quality passive in-ceiling speaker engineered for commercial environments. Designed to support both low impedance and constant voltage (70V/100V) configurations, it offers flexibility for various installation scenarios, including new constructions and retrofit projects. Its discreet flush-mounted design makes it ideal for spaces with limited wall availability, such as small cafés and retail shops. The BCS250 is fully certified for commercial installations, featuring UL 2043 plenum and UL1480A ratings. An optional pendant kit allows for suspension from ceilings when traditional mounting options are not feasible. This speaker pairs seamlessly with the B170S Networked Streaming Stereo Amplifier, accommodating both low impedance and constant voltage settings.

BCS250 Features

- Versatile Configuration: Supports both low impedance and constant voltage (70V/100V) setups.
- Discreet Design: Flush-mounted profile blends seamlessly with various interior décors.
- High-Performance Audio: Tuned crossover ensures uniform frequency response across the coverage area.
- Wide Dispersion: Provides 150° conical coverage for broad sound distribution.
- Easy Installation: Features a long-travel dog-ear mount system and quick-connect Phoenix connector.
- Magnetic Grille: Snap-fit design allows for easy attachment and removal.
- Slim Profile: Requires only 5 inches of mounting depth.
- Safety Certified: UL 2043 plenum and UL1480A certifications for commercial use.
- Optional Accessories: Available in white with optional black grille and pendant kit for flexible installation.

BCS250 Specifications

- Drivers:
  - Woofer: 3.5″ (89mm)
  - Tweeter: 1″ (25mm)
- Frequency Response: 65Hz – 20kHz (-10dB)
- Power Handling: 80 Watts
- Maximum SPL: 105dB average, 110dB peak @ 1 meter
- Sensitivity: 84dB @ 1W, 1m
- Coverage Angle: 150° conical
- Transformer Taps:
  - 70V: 3.5W, 7W, 15W, 30W, 8Ω bypass
  - 100V: 7W, 15W, 30W, 8Ω bypass

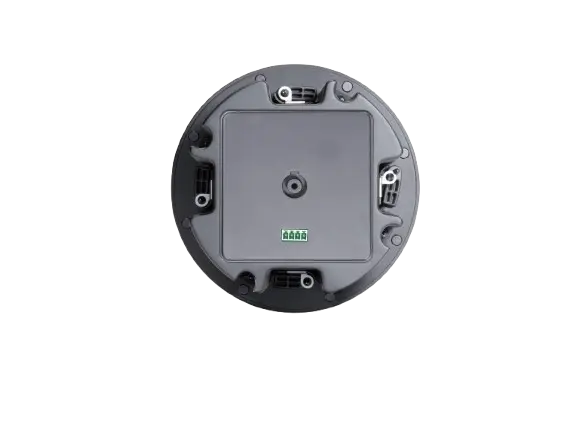

- Input Connector: Phoenix connector with parallel output
- Operating Environment: Indoor use
- Operating Temperature: -20°C to 50°C (-4°F to 122°F)
- Cutout Diameter: 152mm (6″)
- Dimensions (Diameter x Height): 182mm x 126mm (7.1″ x 4.9″)
- Net Weight: 2.2kg (5 lbs)
